The Telefunken Elektroakustik DC6 Drum Microphone Pack is designed for kits consisting of 1 x Rack Tom & 1 x Floor Tom. The DC6 includes three unique voices of Telefunken Elektroakustik's TEC Award winning Dynamic Series microphones together with a pair of the M60 FET condenser microphones for overhead. The perfect comprehensive choice for drum recording and live performances.

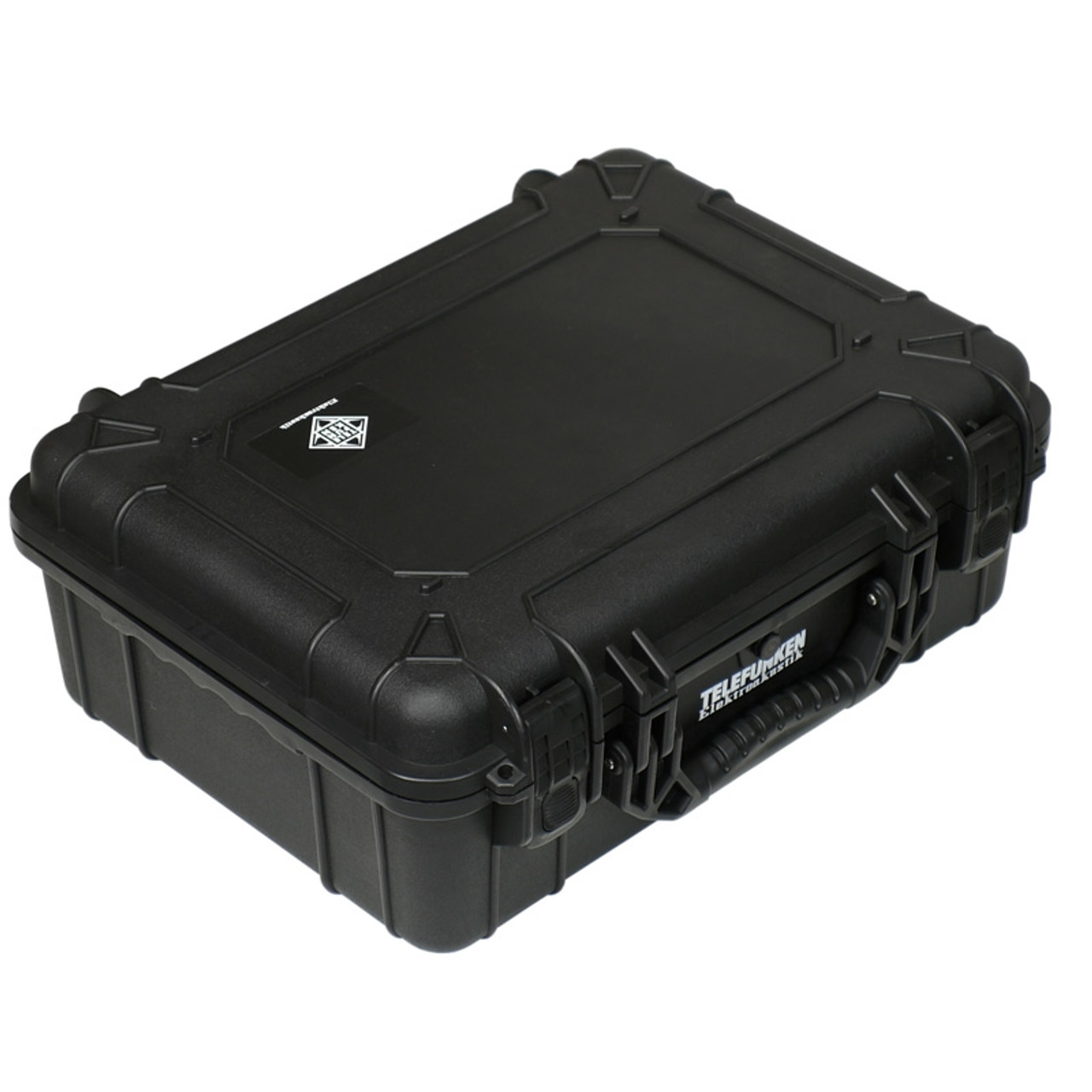

The Telefunken Elektroakustik DC6 Drum Microphone Pack's each microphone set consists of the M82 handling kick drum duties, the M80-SH on snare, the M81-SH for toms, and the M60 FET Cardioid for cymbals or overheads. The Telefunken Elektroakustik DC6 ships in the heavy-duty hard shell HC87 flight case and include multiple drum mounts (M782, M784 and M785) and an SGMC-5R five-meter XLR cable with a right angle female connector for each microphone in the set.
Telefunken Elektroakustik M80-SH Snare Drum Microphone
Telefunken Elektroakustik created the M80-SH for use on snare drum and vocal applications where a lower profile microphone with right angle XLR cable is needed. The Telefunken Elektroakustik M80-SH is the same exact circuit as the Telefunken Elektroakustik M80 Standard, housed in a shorter microphone body with a built-on stand mount. The wide frequency response and higher SPL capabilities of the Telefunken Elektroakustik M80-SH offer the user a superior alternative to the midrange-laden character of many of the industry's standard dynamic microphones. A tight cardioid polar pattern and a frequency response boasting a subtle rise in the high end result in a microphone that is equally suitable for snare drum, vocals or instruments on both the stage and the studio. The Telefunken Elektroakustik M80-SH is finished on both the headgrille and body with a durable, textured black powder coat.
Telefunken Elektroakustik M81-SH Tom Microphone
The Telefunken Elektroakustik M81-SH was designed with the goal of developing a mic that would not only complement the Telefunken Elektroakustik M80-SH, but also stand out in a universe filled with dynamic microphone options. Building off many of the strengths of the Telefunken Elektroakustik M80, the Telefunken Elektroakustik M81-SH retains the same minimal proximity effect, superior feedback rejection, and an articulate mid-range. However, with the Telefunken Elektroakustik M81-SH, the top end is pulled back a bit, yielding a flatter overall frequency response. This combination results in a microphone with a wealth of body and clarity, making it a great tool for fattening up toms, percussion and horns, or taming brighter vocals or thinner sounding sources. The Telefunken Elektroakustik M81-SH is identical to the Telefunken Elektroakustik M81 in circuit, but housed in a shorter microphone body with a built-on stand mount, and finished in a durable, textured dark gray powder coat on both the headgrille and body.
Telefunken Elektroakustik M82 Dynamic Kick Drum Microphone
The Telefunken Elektroakustik M82 is a robust large diaphragm end-address dynamic microphone that has been designed for kick drum and vocal broadcast applications. Hand-assembled in CT, USA, the Telefunken Elektroakustik M82 features two independently functioning EQ switches: KICK EQ and HIGH BOOST, which in turn offer four unique voices. The Telefunken Elektroakustik M82's KICK EQ switch engages a passive filter that reduces some of the lower mid-range frequencies (centered around 350Hz) commonly cut when processing a kick drum. The HIGH BOOST switch tilts the upper mid-range and high frequencies (starting around 2kHz with a 6dB boost by 10kHz) to allow for extra articulation. In the flat setting (both switches off), the Telefunken Elektroakustik M82 is equally suited for vocals, guitar amps, and brass.
Telefunken Elektroakustik M60 FET Matched Pair
The newly designed Telefunken Elektroakustik M60 FET (Field Effect Transistor) small diaphragm microphone is Telefunken Elektroakustik's first non-vacuum tube, FET-based solid-state condenser microphone. The DC6 includes two identical Telefunken Elektroakustik M60 FET amplifiers and two matched TK60 cardioid capsules. The TK60 features a 6-micron gold-sputtered membrane measuring 15mm in diameter, with a surprisingly full low end, and a quick and accurate transient response. The frequency response is flat from 150 Hz to 7 kHz, with a smooth, airy presence peak at 8 kHz making it ideal for drum overheads, hi-hat and ride cymbals, as well as various mallet and string based percussion. The Telefunken Elektroakustik M60 FET's incredibly quick transient response captures nuances and subtleties with impressive precision and clarity. This results in an extremely detailed sonic image with definition and presence, perfectly suited for the complex character of string instruments and percussive sources.
Telefunken Elektroakustik DC6 Drum Microphone Pack Features
- Telefunken Elektroakustik M80-SH Snare Drum Microphone
- Lower profile microphone with right angle XLR cable
- Housed in a shorter microphone body with a built-on stand mount
- Wide frequency response and higher SPL capabilities
- Tight cardioid polar pattern and a frequency response boasting a subtle rise in the high end
- Finished on both the headgrille and body with a durable, textured black powder coat
- Equally suitable for snare drum, vocals or instruments on both the stage and the studio
- Telefunken Elektroakustik M81-SH Tom Microphone
- Minimal proximity effect, superior feedback rejection, and an articulate mid-range
- Top end is pulled back a bit, yielding a flatter overall frequency response
- Housed in a shorter microphone body with a built-on stand mount
- Finished on both the headgrille and body with a durable, textured dark gray powder coat
- Great tool for fattening up toms, percussion and horns, or taming brighter vocals or thinner sounding sources
- Telefunken Elektroakustik M82 Dynamic Kick Drum Microphone
- A robust large diaphragm end-address dynamic microphone
- Designed for kick drum and vocal broadcast applications
- Two independently functioning EQ switches for four unique voices
- KICK EQ switch engages a passive filter that reduces some of the lower mid-range frequencies
- HIGH BOOST switch tilts the upper mid-range and high frequencies to allow for extra articulation
- In the flat setting (both switches off), it is equally suited for vocals, guitar amps, and brass
- Telefunken Elektroakustik M60 FET Matched Pair
- Two identical M60 FET amplifiers paired with a matched set of TK60 cardioid polar pattern capsules
- 6-Micron gold-sputtered membrane measuring 15mm in diameter
- Surprisingly full low end, and a quick and accurate transient response
- Captures nuances and subtleties with impressive precision and clarity
- Perfectly suited for the complex character of stringed instruments and percussive sources
Telefunken Elektroakustik DC6 Drum Microphone Pack Specifications
- Telefunken Elektroakustik M80-SH Snare Drum Microphone
- Capsule: 25 mm
- Transformer: Custom Wound TELEFUNKEN T80
- Polar Pattern: Supercardioid
- Frequency Range: 50 Hz - 18 kHz
- Sensitivity: 1.54 mV/Pa
- Output Impedance: 325 O
- Maximum SPL (for 1% THD): 135 dB
- Dimensions: 125 mm L x 48 mm Dia
- Weight: 340 g
- Telefunken Elektroakustik M81-SH Tom Microphone
- Type: Dynamic Moving Coil
- Capsule: 25 mm
- Transformer: Custom Wound TELEFUNKEN T80
- Polar Pattern: Supercardioid
- Frequency Range: 50 Hz - 18 kHz
- Sensitivity: 1.54 mV/Pa
- Output Impedance: 325 O
- Maximum SPL (for 1% THD): 135 dB
- Dimensions: 125 mm L x 48 mm Dia
- Weight: 340 g
- Telefunken Elektroakustik M82 Dynamic Kick Drum Microphone
- Type: Dynamic Moving Coil
- Capsule: 32 mm
- Polar Pattern: Cardioid
- Frequency Range: 25 Hz - 18 kHz
- Sensitivity: 1.85mV/Pa
- Output Impedance: 250 O
- Maximum SPL (for 1% THD): 146 dB
- Dimensions: 155 mm L x 63 mm Dia
- Weight: 434 g
- Telefunken Elektroakustik M60 FET Matched Pair
- Type: Pressure Gradient Condenser
- Capsule: TK60 - 15 mm Edge Terminated Diaphragm
- Tube Type: Active FET Transistor (No Vacuum Tube)
- Transformer: Custom Wound TELEFUNKEN T61CT
- Polar Pattern: Cardioid
- Frequency Range: 20 Hz - 31.5 kHz, ± 2 dB (Amplifier)
- Sensitivity: 8.6 mV/PA, ± 1dB
- THD at 1kHZ at 1Pa (Amplifier): < 0.01%
- Output Impedance: 120 O
- Maximum SPL (for 1% THD): > 130 dB
- S/N Ratio: > 89 dBA
- Self Noise (Amplifier): = 5 dBA
- Dimensions: 140 mm L x 21 mm Dia
- Weight: 110 g
- Current Draw: 2 mA
- Power Requirement: +48 VDC Phantom Power
Telefunken Elektroakustik DC6 Drum Microphone Pack Includes
- 1 x M82 with M782 mount
- 1 x M80-SH with M784 (metal) and M785 (plastic) mount
- 2 x M81-SH with M784 (metal) and M785 (plastic) mount
- 2 x M60 FET with M761 elastic mount
- 6 x SGMC-5R five-meter XLR with right angle female connector
- 1 x HC87 Hard Shell Flight Case
- 1 Year Warranty
