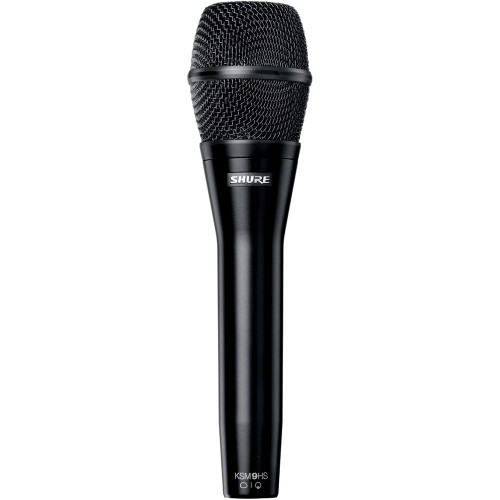

The Shure KSM9HS Handheld Condenser Microphone is a premium vocal condenser microphone that captures vocal subtlety with extraordinary detail to deliver clear articulation, functional flexibility, and precise vocal reproduction for live performance.
The Shure KSM9HS Handheld Condenser Microphone is engineered to exacting standards, featuring Class A transformerless preamplifier circuitry for transparent sound capture and dual gold-layered diaphragms that reveal every nuance and subtlety and an advanced suspension shock mount virtually eliminates handling noise.
Characteristics
The Shure KSM9HS Handheld Condenser Microphone offers exceptional consistency across all frequencies, providing more gain before feedback, while decreasing proximity effect. Shure Axient™ and UHF-R® Wireless Systems feature KSM9 wireless cartridges (in champagne or black finishes) as the premier choice in handheld wireless microphone options. The Shure KSM9HS Handheld Condenser Microphone is built to exacting Shure endurance standards, renowned worldwide and proven night after night, center stage.
Shure KSM9HS Handheld Condenser Microphone Features
- Exceptional consistency across all frequencies, providing more gain before feedback, while decreasing proximity effect
- Dual gold layered, low-mass Mylar® diaphragm design
- Switchable polar patterns (hypercardioid and subcardioid)
- Advanced suspension shock mount
- Premium electronic components including Class A transformerless preamplifier circuitry
- Gold-plated internal and external connectors, including XLR Output Durable aluminum housing
- Full-range frequency response (50Hz to 20kHz)
Shure KSM9HS Handheld Condenser Microphone Specifications
- Cartridge Type: Condenser (Electret Biased)
- Frequency Response: 50 to 20,000 Hz
- Output Impedance: 145 Ohms (Actual)
- Phantom Power: 48 VDC ± 4 VDC (IEC-268-15/DIN 45 596), Positive Pins 2 and 3
- Current Drain: 5.2 mA Typical at 48 VDC
- Common Mode Rejection: > 60 dB, 50 Hz to 20 kHz
- Polarity: Positive Pressure on Front Diaphragm Produces Positive Voltage on Output Pin 2 Relative to Pin 3
- Polar Patterns: Hypercardioid, Subcardioid
- Sensitivity:
- Hypercardioid: -50.5 dBV/Pa
- Subcardioid: -53.0 dBV/Pa
- Self-Noise (Typical, Equivalent SPL; A-Weighted, IEC 651):
- Hypercardioid: 20.7 dB
- Subcardioid: 22.7 dB
- Maximum SPL @ 1000 Hz: 2500 Ohms Load
- Hypercardioid: 150.8 dB
- Subcardioid: 153.0 dB
- Maximum SPL @ 1000 Hz: 1000 Ohms Load
- Hypercardioid: 150.9 dB
- Subcardioid: 153.1 dB
- Output Clipping Level 2500 Ohms Load: 7.0 dBV
- Output Clipping Level 1000 Ohms Load: 6.4 dBV
- Dynamic Range (@ 1 kHz) 2500 Ohms Load:
- Hypercardioid: 130.8 dB
- Subcardioid: 130.1 dB
- Dynamic Range (@ 1 kHz) 1000 Ohms Load:
- Hypercardioid: 130.1 dB
- Subcardioid: 130.6 dB
- Signal to Noise Ratio:
- Hypercardioid: 73.3 dB
- Subcardioid: 71.3 dB
- Dimensions: 49 mm (1 15/16 in.) Max Body Diameter, 191 mm (7.5 in.) Long
- Weight: 300 Grams (10.6 oz.)
Shure KSM9HS Handheld Condenser Microphone Includes
- 1 x Shure KSM9HS Handheld Condenser Microphone
- 1 x Shure A25E Stand Adapter
- 1 x Shure 95A2050 5/8" to 3/8" Thread Adapter
- 1 x Shure AK9C Zipped Carrying Case
- 2 Year Warranty
