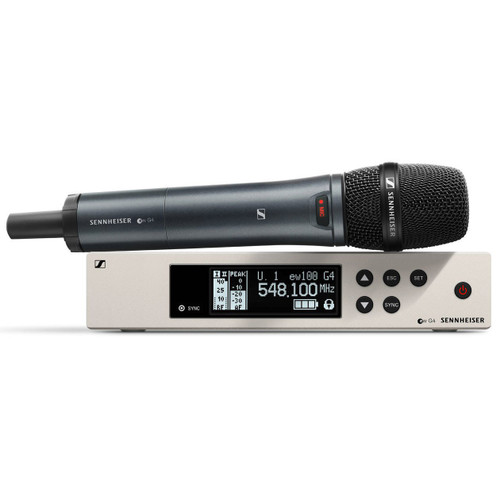

The Sennheiser EW 100 G4-865-S Wireless Handheld Microphone System offers the next level in your journey as a stage professional. This rugged all-in-one wireless system contains one SKM 100 G4 Handheld Transmitter w/ mute switch, one MMD 865-1 Mic Capsule, one EM 100 G4 Rackmount Receiver, one rack kit, one RJ10 linking cable and one mic clip.
The Sennheiser EW 100 G4-865-S Wireless Handheld Microphone System is now even more simple, flexible and reliable: The 100 series has become the first choice for both sound designers and occasional users because of its simple operating concept – and because the system makes no compromises in terms of live sound.
Reliability and Performance
Eventually, you’ll get to a level in your career as an engineer or musician when the size stage you’re performing on demands more than an entry-level wireless system. You simply need more reach, more power and more reliability than what a 2.4 GHz system will allow. Enter the evolution wireless Sennheiser G4 100 Series—the next level in your journey as a stage professional.
Feature-Rich and Built to Last
The evolution wireless Sennheiser G4 100 Series is packed with features that make it possible to get you up and running fast and efficiently. Use the Easy Setup function to automatically scan and select the best frequencies around you and take full advantage of the UHF spectrum. With up to 100 meters of range and a battery life of 8 hours, it’s easy to see how the durably constructed ewG4 transmitters and receivers will perform when you need them to.
Differences Between the Sets
The 835, 845 and 865 vocal microphone capsules are all great options and vary depending on your needs. While the 835 is ideal for most stages and features a cardioid polar pattern that rejects unwanted stage noise from the sides and rear, the 845 features a super-cardioid polar pattern that offers even more rejection and isolation for your vocal performance. The 865 introduces a condenser super-cardioid capsule, offering more sensitivity and clarity than a traditional dynamic capsule like the 835 or 845.
Sennheiser SKM 100 G4 Handheld Transmitter
The Sennheiser SKM 100 G4 is a powerful handheld transmitter with a lightweight aluminum housing for evolution wireless G4 100 Series systems. Your choice of Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules. Easy and flexible wireless synchronization between transmitter and receiver via infrared. Fast frequency allocation for up to 12 receivers via new linking functionality.
Sennheiser MMD 865-1 Microphone Capsule
The Sennheiser MMD 865-1 Microphone Capsule is a microphone module with capacitor technology. With high presence and feedback rejection, it is ideally suited to vocals and speech transmission. Compatible with all handheld transmitters from the ew G3, ew G4, D1, AVX, SpeechLine Digital Wireless and 2000 series.
Sennheiser EM 100 G4 True Diversity Receiver
The Sennheiser EM 100 G4 True Diversity Receiver is a half-rack receiver in a full-metal housing with intuitive LCD display for full control with evolution wireless G4 100 Series systems.
Sennheiser EW 100 G4-865-S Wireless Handheld Microphone System Features
- Overall System Features
- Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.
- State-of-the-art live sound featuring Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules
- on a lightweight aluminium transmitter with integrated mute switch
- True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
- Sennheiser SKM 100 G4 Handheld Transmitter
- Your choice of Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
- Sennheiser MMD 865-1 Microphone Capsule
- Microphone module with capacitor technology
- Ideally suited to vocals and speech transmission
- High feedback rejection and powerful sound
- Compatible to all handheld transmitters of series ewG3 and 2000
- Sennheiser EM 100 G4 True Diversity Receiver
- True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control.
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
Sennheiser EW 100 G4-865-S Wireless Handheld Microphone System Specifications
- Sennheiser SKM 100 G4 Handheld Transmitter:
- Dimensions: Approx. Ø 50 mm x 265 mm
- Compander: Sennheiser HDX
- Total Harmonic Distortion (THD): = 0.9 %
- Weight: (incl. Batteries) Approx. 450 g
- Signal-to-Noise Ratio: = 110 dBA
- RF Output Power: Max. 30 mW
- Switching Bandwidth: Up to 42 MHz
- Peak Deviation: ±48 kHz
- Nominal Deviation: ±24 kHz
- Operating Time: Typically 8 Hours
- Modulation: Wideband FM
- Power Supply: 2 AA Batteries, 1.5 V or BA 2015 Accupack
- Current Consumption:
- At Nominal Voltage: Typical 180 mA
- With Transmitter Switched Off: = 25 µA
- Input Impedance: 40 k Ohm
- Max. Input Voltage: 3 V DC
- Powering: 3 V Battery / 2.4 V Rechargeable Battery
- Transmission Frequency: Max. 1680 Transmitting Frequencies, Adjustable in 25 kHz Steps 20 Frequency Banks, Each with Up to 12 Factory-Preset Channels, No Intermodulation, 1 Frequency Bank with Up to 12 Programmable Channels
- AF Frequency Response: 80 – 18,000 Hz
- Temperature Range: -10 °C to +55 °C
- Frequency Stability: = ±15 ppm
- Sennheiser MMD 865-1 Microphone Capsule:
- Sound Pressure Level (SPL): 152 dB
- Transducer Principle: Condenser
- Pick-up Pattern: Super Cardioid
- Sensitivity: 1,6 mV/Pa
- Sennheiser EM 100 G4 True Diversity Receiver:
- Frequency Range:
- 1G8: 1785 - 1800 MHz
- A: 516 - 558 MHz
- A1: 470 - 516 MHz
- AS: 520 - 558 MHz
- B: 626 - 668 MHz
- C: 734 - 776 MHz
- D: 780 - 822 MHz
- E: 823 - 865 MHz
- G: 566 - 608 MHz
- GB: 606 - 648 MHz
- Dimensions: Approx. 190 mm x 212 mm x 43 mm
- Compander: Sennheiser HDX
- THD, Total Harmonic Distortion: = 0.9 %
- Weight: Approx. 980 g
- Audio Output:
- 6.3 mm Jack Socket (Unbalanced): +12 dBu
- XLR Socket (Balanced): +18 dBu
- Signal-to-Noise Ratio: = 110 dBA
- Switching Bandwidth: Up to 42 MHz
- Peak Deviation: ±48 kHz
- Nominal Deviation: ±24 kHz
- Modulation: Wideband FM
- Power Supply: 12 V DC
- Current Consumption: 300 mA
- Adjacent Channel Rejection: Typically = 65 dB
- Intermodulation Attenuation: Typically = 65 dB
- Receiving Frequency: Max. 1680 Receiving Frequencies, Adjustable in 25 kHz Steps 20 Frequency Banks, Each with Up to 12 Factory-Preset Channels, No Intermodulation 1 Frequency Bank with Up to 12 Programmable Channels
- RF Sensitivity: < 2.5 µV for 52 dBA eff S/N
- Equalizer:
- Preset 1: Flat
- Preset 2: Low Cut (-3 dB at 180 Hz)
- Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
- Preset 4: High Boost (+6 dB at 10 kHz)
- Temperature Range: -10 °C to +55 °C
- Receiver Principle: True Diversity
- Blocking: = 70 dB
- Frequency Range:
Sennheiser EW 100 G4-865-S Wireless Handheld Microphone System Includes
- 1 x Sennheiser EM 100 G4 True Diversity Receiver
- 1 x Sennheiser SKM 100 G4-S Handheld Transmitter
- 1 x Sennheiser MMD 865-1 Microphone Head (865-S Variant Only)
- 1 x Sennheiser GA 3 Rackmount Set
- 1 x Sennheiser MZQ 1 Microphone Clamp
- 1 x Power Supply
- 2 x AA Batteries
- 2 x Rod Antennas
- 1 x RJ 10 Cable
- 1 x Quick Start Guide
- 1 x Safety Guide
- 1 x Manufacturer Declaration Sheet
- 1 x Frequency Supplement Sheet
- Manufacturer Warranty
