The Samson Servo 120a 2-Channel Power Amplifier is a versatile 2-channel power amplifier for reliable and high-quality audio performance. With 60 watts of power per channel at 4 ohms, it is suitable for a wide range of applications, from powering studio monitors to driving small PA systems. Featuring a rugged construction, comprehensive protection circuitry, and flexible connectivity options, the Servo 120a is perfect for both professional and home audio setups.

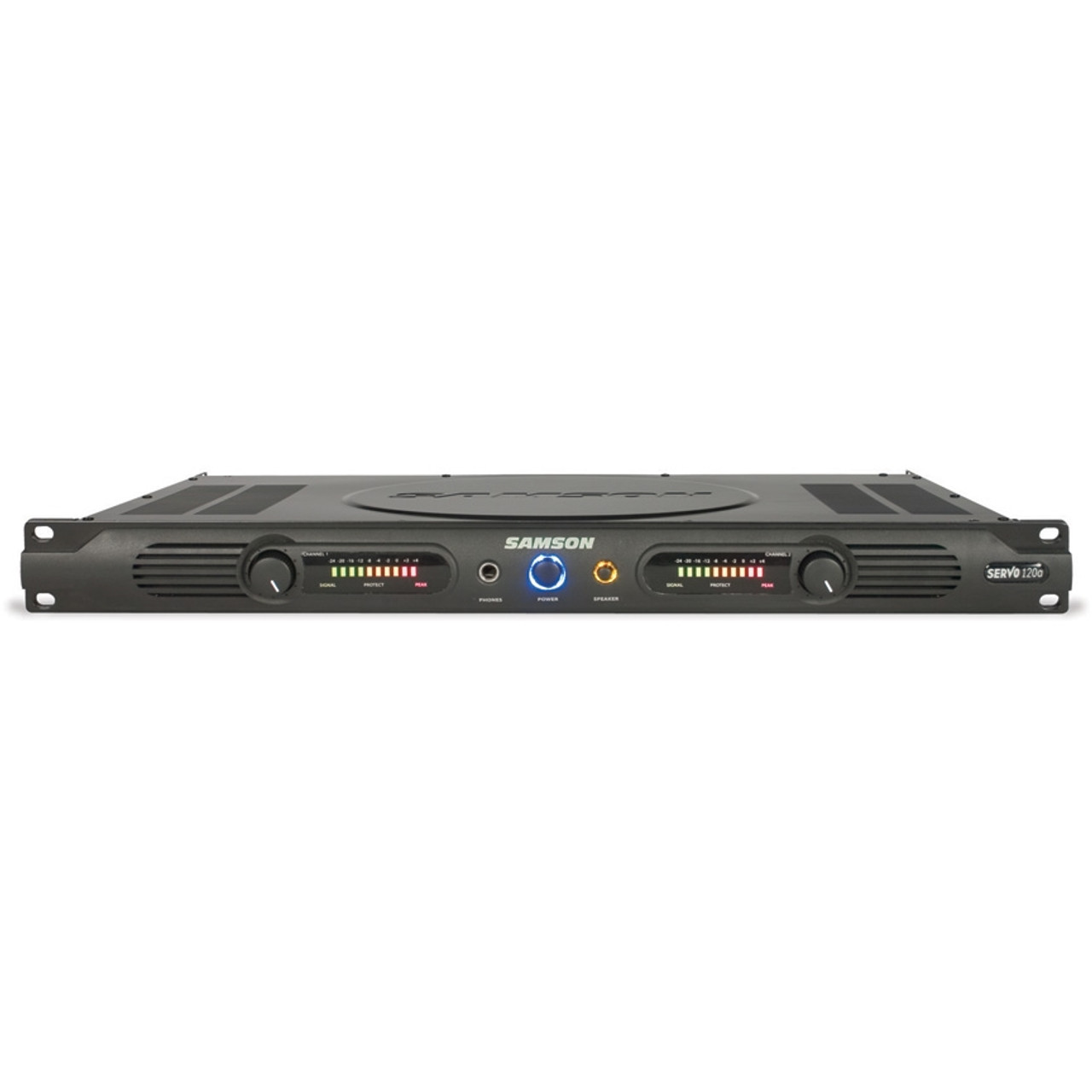

The Samson Servo 120a 2-Channel Power Amplifier is ideal for powering near-field monitors or installation sound. It delivers "reference-class" audio performance and reliability in a compact package. This single rack space stereo power amplifier delivers 60 watts per channel into 4 ohms or 120 watts into 8 ohms in bridge mode. The intuitive front panel features controls and indicators including a power switch, independent left and right channel input level controls, 10-segment LED meters, a protection LED, and a convenient headphone jack and speaker on/off switch for private cue monitoring. Perfect for recording studios, sound reinforcement, stage monitoring and home theater applications, the Samson Servo 120a's bipolar design and toroidal transformer power supply ensure reliability. The convection cooling design also means there is no fan, so you get incredibly quiet performance from this remarkable power amplifier. And with such versatility, the Samson Servo 120a will provide seamless performance in any number of applications.
Samson Servo 120a 2-Channel Power Amplifier Applications
- Fitness
- Theater / Production
- Home Audio
- Restaurant / Retail
Samson Servo 120a 2-Channel Power Amplifier Features
- Single-space 19-inch rackmount servo controlled power amplifier
- 60 watts per side at 4 ohms stereo
- 120 watts at 8 ohms (bridged mono)
- 1/4-inch balanced phone jack and RCA inputs
- Bi-polar design and toroidal transformer power supply
- Individual left and right level controls
- 10-segment, 3-color LED meters
- Convection-cooled design
- Headphone jack with speaker output mute
Samson Servo 120a 2-Channel Power Amplifier Specifications
- Stereo Mode Rated Output Power, Per Channel (@ 1 kHz):
- 4 Ohm < 0.05% THD+N: 60 W
- 4 Ohm 1% THD+N: 80 W
- 8 Ohm < 0.05% THD+N: 50 W
- 8 Ohm 1% THD+N: 55 W
- Bridge Mode Rated Output Power (@ 1 kHz):
- 8 Ohm < 0.05% THD+N: 120 W
- 8 Ohm 1% THD+N: 150 W
- Typical Distortion, Per Channel:
- THD+N (80 kHz LPF @ 1 kHz, Rated Output Power): 0.01%
- IMD (SMPTE 4:1, 60 Hz & 7 kHz @ Rated Output Power): 0.03%
- Signal To Noise Ratio (22 Hz - 22 kHz Bandwidth @ dB Below Rated Output Power): 105 dB
- Frequency Response: 10 Hz - 20 kHz +0, -0.5 dB, 3 Hz - 65 kHz, +0, -3.0 dB
- Input Sensitivity (Level Control Set to Maximum / Inputs to Achieve Rated Power): RCA: -10 dBv, 1/4" +4 dBu
- Crosstalk (Adjacent Channels): -75 dB, 1 kHz
- Output DC Offset Voltage: ± 50 mV, DC Servo Controlled
- Headphone Output Level: 400 mW (into 100 Ω @ 1% THD+N)
- Dimensions: 17.5" x 11.5" x 1.75" / 444 mm x 292 mm x 44 mm
- Weight: 15.6 lb / 7 kg
Samson Servo 120a 2-Channel Power Amplifier Includes
- 1x Samson Servo 120a 2-Channel Power Amplifier
- 1x IEC Power Cord
- 2 Year Warranty
