Rane PE-15 Parametric Equalizers (Used)

Rane

(No reviews yet) Write a Review
Product Code: U-1044
On Sale!
No Longer Available

Sorry but this item is currently unavailable. But no worries, just contact the Front End Audio sales team at 888-228-4530 and we will be happy to find you an alternative product that will meet your needs.

Got Questions? Need Support?

888-228-4530 Contact Us!

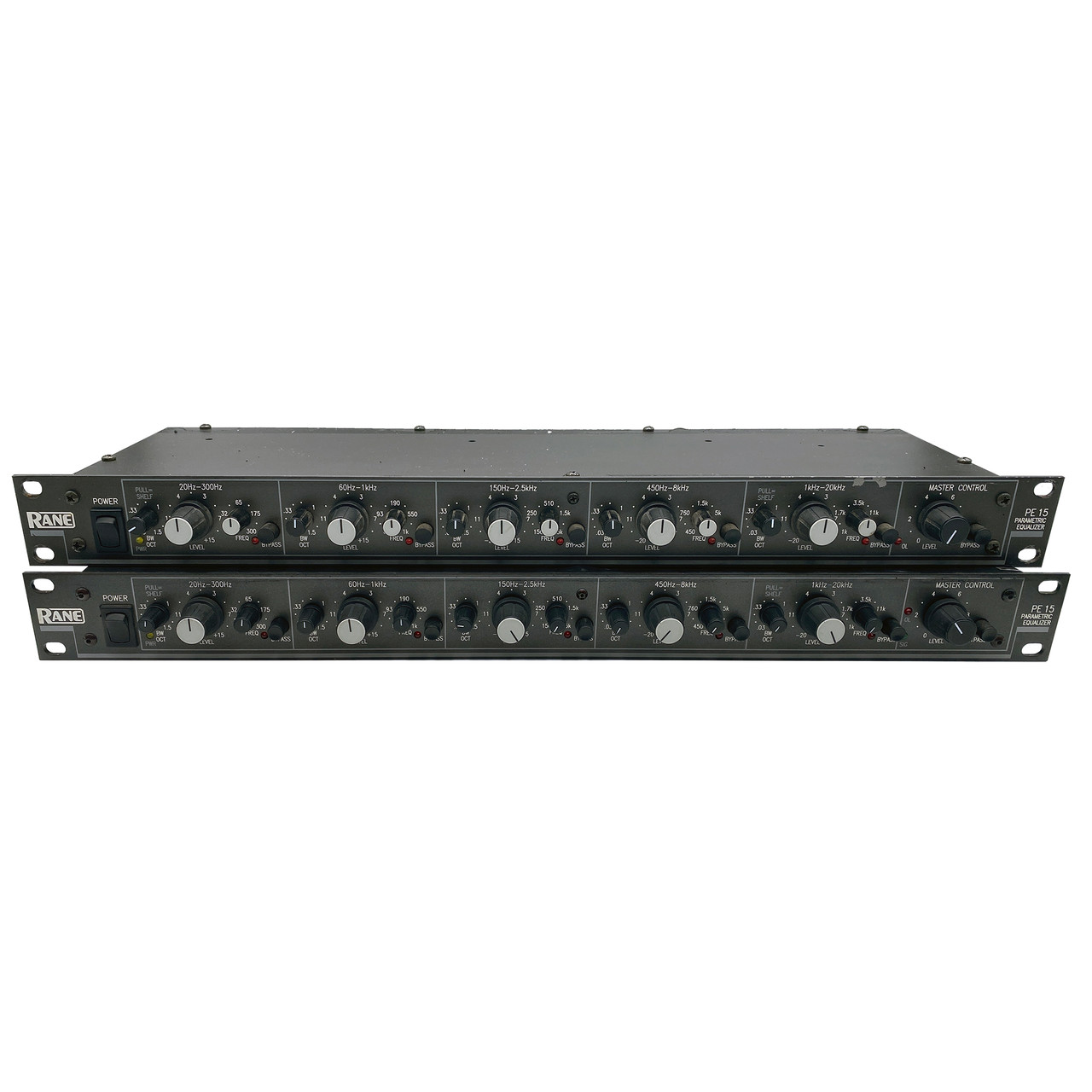

Front End Audio acquires previously owned gear through our Buy-Back program. You can purchase used gear at a great price but there are no manufacturer warranties with these items. These items have been inspected and/or tested by our staff to make sure each one is in working condition and comes with our commitment to service. This pair of Rane PE-15 Parametric Equalizer are well used, but look good and most importantly functions perfectly.

The Rane PE-15 Parametric Equalizer is a single channel 5-band equalizer of incredible versatility. It incorporates all the required features of a parametric equalizer and fullfunction notch filter set. Each of the five filters in the PE-15 cover a center Frequency range of four octaves, a Bandwidth of .03 to 1.5 octaves, and a boost/cut range of +15 dB to -20 dB. Bands one and five switch to allow peaking or shelving characteristics. Special attention to the design of the state-variable filters make all of these adjustments possible. All parameters are completely independent. To the user, this means any control may be operated in any order without affecting the others. This flexibility makes the PE-15 ideal for all audio contouring applications. A range that begins with the sharpest of notch filters and continues through broad-band program contouring. Each Filter in the PE-15 may be individually Bypassed via a front panel switch, allowing the operator to audibly audition the effect of each Filter. An overall Bypass provides a “hardwire” from the Input connector to the Output connector, completely defeating all effects of the unit. An overall Master Control Level is provided which covers a range of completely off to +20 dB. Front panel includes individual Bypass and Overload indicators for each band. The rear panel provides both XLR as well as ¼" Inputs and Outputs. All connectors are fully active balanced. As a notch filter the PE-15 is unsurpassed. With bandwidths as narrow as 1/30th octave and deep 20 dB cut capability the PE-15 can remove any undesired slice of audio resonance without audibly affecting sonic quality.

Rane PE-15 Parametric Equalizers Features

  • Five Parametric Bands
  • Four Octave Frequency Sweep Range per Band
  • .03 to 1.5 Octave Bandwidth Range
  • -20 to +15 dB Filter Level Range with 0 dB Detent Controls
  • Bands 1 & 5 Peaking or Shelving
  • Individual and Overall Bypass Switches with Indicators
  • Overload Indicator
  • Master Level Control
  • +20 dB Gain Available

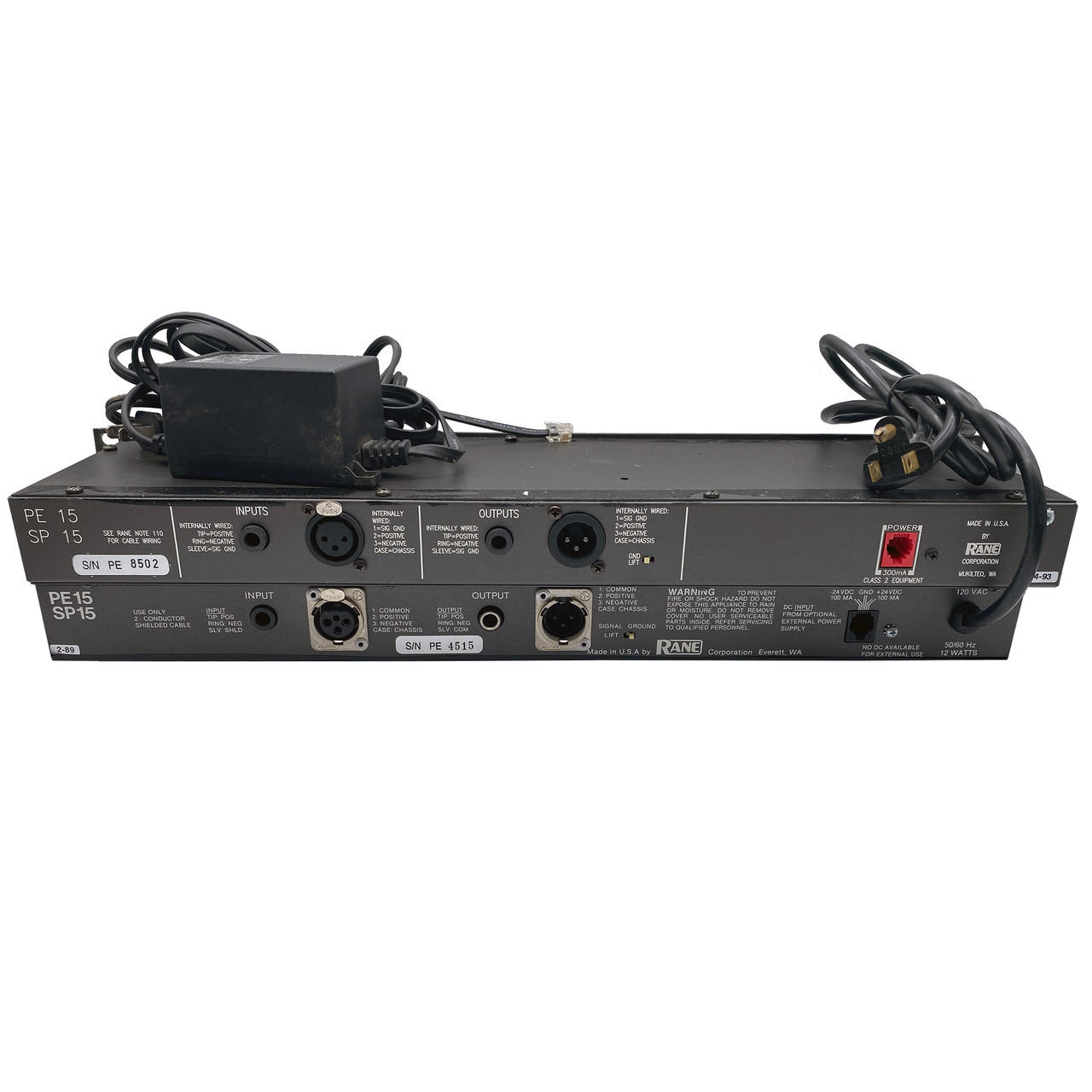

  • Balanced XLR and ¼" TRS Connectors

Rane PE-15 Parametric Equalizers Include

  • Rane PE-15 Parametric Equalizer w/ In-line Power
  • Rane PE-15 Parametric Equalizer w/ Power Supply
  • Manual
