The JoeCo BlackBox BBR1-B 24-Track Recorder is a well-established and respected icon of the professional audio industry, with balanced I/O to ensure hassle-free but absolutely dependable multi-track audio recording direct from a mixing console or in a location recording environment.

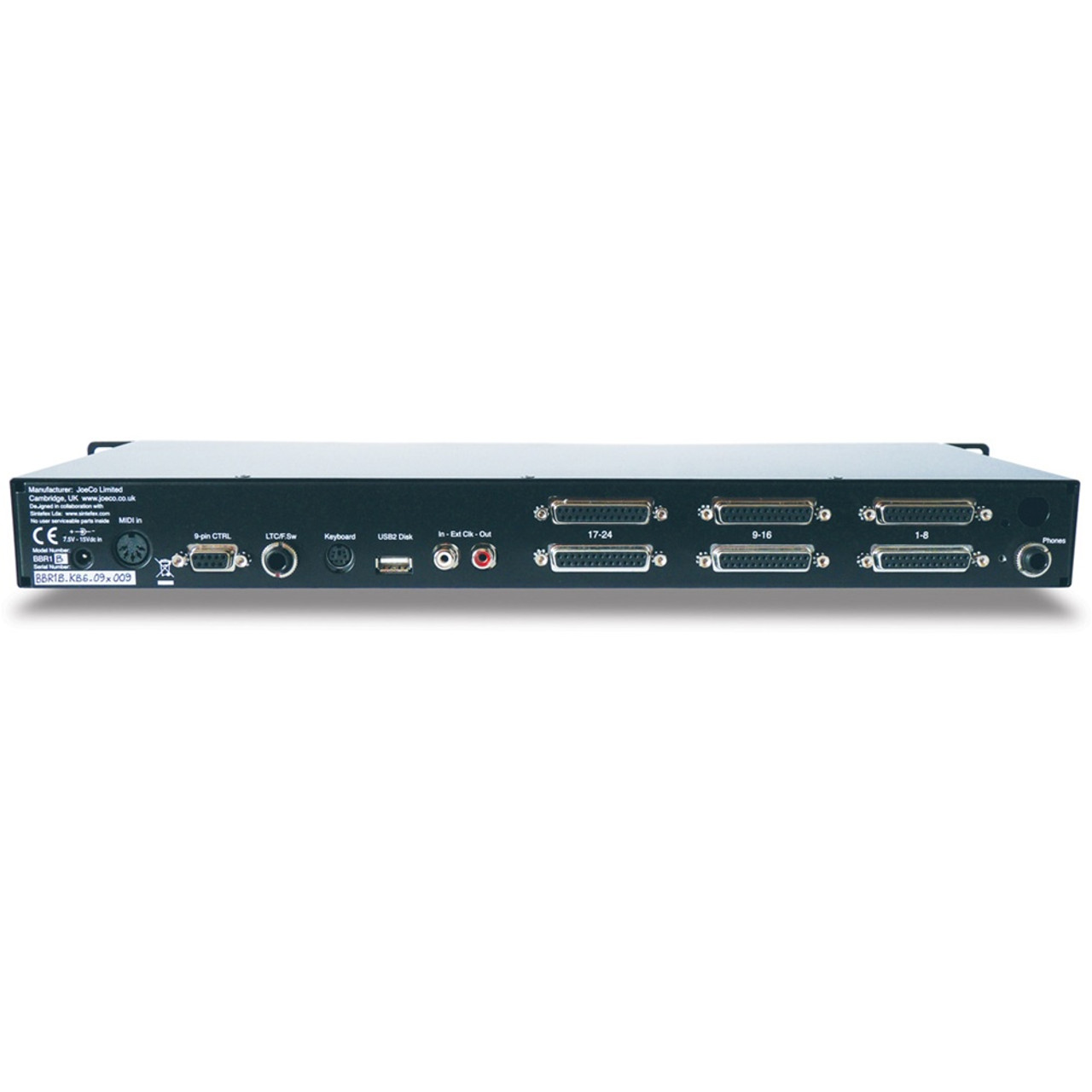

The JoeCo BlackBox BBR1-B 24-Track Recorder is the first large-scale multi-channel recorder specifically designed for audio acquisition and capturing live performance. Developed to solve the inherent problems of working with computer-based systems in a live environment, it provides engineers with a computer-free, high-quality solution for live multi-channel audio capture. Built for ease of use inclusion in rigs where reliability is paramount, the JoeCo BlackBox BBR1-B Multi-Channel Recorder offers genuine set it and forget it functionality for applications when time is sparse but standards must remain high. For additional peace of mind in live scenarios, the unit loops the inputs directly to the outputs via relays when in record or stop mode, so that even a power failure cannot affect the audio through the PA . The JoeCo BlackBox BBR1-B’s three lower 25-way female D-type connectors are used as balanced inputs while the three upper 25-way female connectors are used as balanced outputs.
The JoeCo BlackBox BBR1-B 24-Track Recorder is designed and built to exacting standards with rugged construction and a suite of unique multi-track audio capture features. The choice of professional users, the JoeCo BBR1-B multi-track recorder is the multi-track recording solution which the professional audio industry chooses and trusts.
JoeCo BlackBox BBR1-B 24-Track Recorder Features
- 24-Channel record or playback @ up to 24bit/96kHz
- Multiple units can be linked together for large recordings
- Only 1 rack unit tall (435mm x 44mm x 170mm) and weighing just 2.1kg
- Records standard broadcast WAV files to an external USB2 drive, or USB Flash drive. Captured audio material can be used in any digital audio workstation for instant re-purposing without time consuming file transfers
- Simple to operate and understand
- Attaches to any live console to provide virtual sound checking
- Fail-safe features for secure audio capture
- Track, song and folder naming
- Allows the creation of headphone monitor mixes with level and pan on each track
- Remote control via QWERTY keyboard, MIDI, Sony 9-pin, JoeCoRemote
- Remote control and monitoring via JoeCoRemote for iPad
JoeCo BlackBox BBR1-B 24-Track Recorder Specifications
- General:
- Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz.
- Bit Depths: 16 / 24 bit
- Disk Interface: USB2 – Easy to Obtain
- Disk Format: FAT32 – Compatible with Both Mac and PC
- File Type: Standard Mono Broadcast WAV Files
- Monitoring: 1 x 1/4” TRS Jack Socket, Headphone Mix / Solo
- Physical:
- Size: 19” Rack Mounted 1U (425mm x 44mm x 170mm)
- Weight: 2.1 kg
- Power: (9V - 16V DC (< 30W). 2.1mm DC Inlet
- Audio Inputs/Outputs:
- Analogue Inputs / Outputs:
- Levels: -10dBu / +4dBu Switchable
- Max Input / Output Level: +22dBu = 0dBFS
- A-D / D-A Conversion: 24bit, 96kHz 106dB S/N, 96dB THD+N (Typical A-Weighted)
- Analogue Inputs / Outputs:
- Control and Synchronisation:
- JoeCoRemote for iPad: App + Hardware Interface for Remote Control. Wireless or Wired Connectivity
- MIDI: 1 x 5-Pin DIN (Open Loop). MIDI Time Code (MMC) and MIDI Machine Control (MMC) Protocol
- LTC: 1 x 1/4” TRS Jack Socket. Frame Rates Supported (30 fps, 29.97 Drop fps, 25 fps, 24 fps, 23.98 fps)
- Machine Control: 1 x 9-Pin D, SONY PII Protocol
- Audio Clock Synchronisation: 2 x RCA Sockets AES3 / SPDIF Format, Also Used for Communications to Slave Units
JoeCo BlackBox BBR1-B 24-Track Recorder Includes
- 1 x JoeCo BlackBox BBR1-B 24-Track Recorder
- 1 x Power Supply
- Manufacturer Warranty
