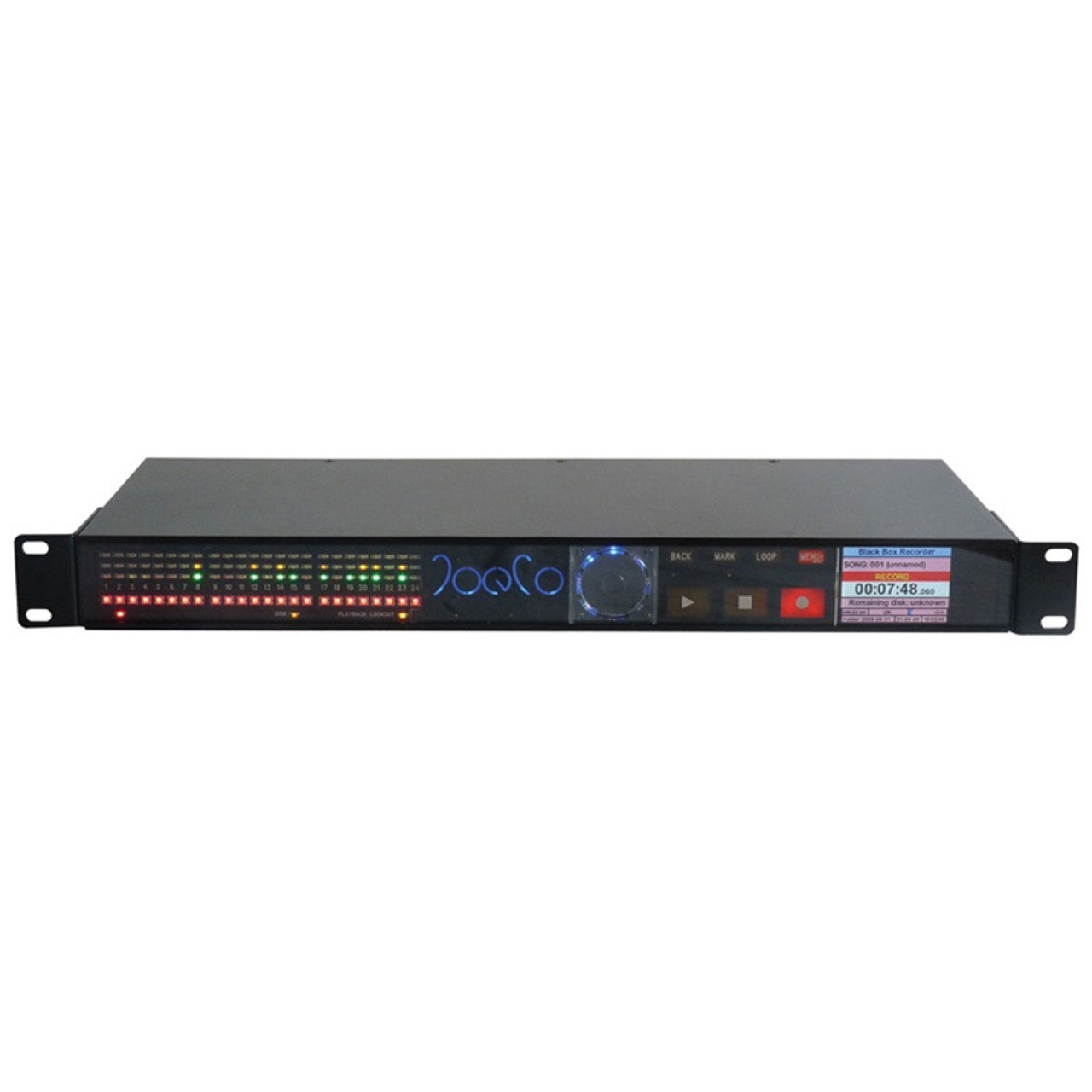

The JoeCo BlackBox BBR1-A 24-Track Recorder features an ADAT Optical I/O and is specifically designed for audio acquisition and capturing live performance. Developed to solve the inherent problems of working with computer-based systems in a live environment, it provides engineers with a computer-free, high-quality solution for live multi-channel audio capture.
The JoeCo BlackBox BBR1-A 24-Track Recorder brings the benefits of multi-track audio capture with the Blackbox Recorder to digital desks and D-A converters which are equipped with Lightpipe (TOSlink) inputs and outputs. Three 8-channel Lightpipe inputs can be connected from the mixer while three Lightpipe outputs can return the signals back to the mixer. All other Blackbox multi-track recorder features remain unchanged, and the full analogue I/O capability of the standard BBR1 is still available for situations where the Lightpipe interface is not suitable. The JoeCo BlackBox BBR1-A is designed and built to exacting standards with rugged construction and a suite of unique features. The choice of professional users, the JoeCo BlackBox BBR1-A 24-Track Recorder is the solution the professional audio industry chooses and trusts.
Note: Due to limitations in the Lightpipe format, use of this option restricts 24-track recording to single speed sample rates (44.1kHz and 48kHz). At double sample rates the unit employs the SMUXII protocol reducing the I/O count to 12 channels.
JoeCo BlackBox BBR1-A 24-Track Recorder Features
- 24-Channel record or playback @ up to 24bit/96kHz
- Multiple units can be linked together for large recordings
- Only 1 rack unit tall (435mm x 44mm x 170mm) and weighing just 2.1kg
- Records standard broadcast WAV files to an external USB2 drive, or USB Flash drive. Captured audio material can be used in any digital audio workstation for instant re-purposing without time consuming file transfers
- Simple to operate and understand
- Attaches to any live console to provide virtual sound checking
- Fail-safe features for secure audio capture
- Track, song and folder naming
- Allows the creation of headphone monitor mixes with level and pan on each track
- Remote control via QWERTY keyboard, MIDI, Sony 9-pin, JoeCoRemote
- Remote control and monitoring via JoeCoRemote for iPad
JoeCo BlackBox BBR1-A 24-Track Recorder Specifications
- General:
- Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz.
- Bit Depths: 16 / 24 bit
- Disk Interface: USB2 – Easy to Obtain
- Disk Format: FAT32 – Compatible with Both Mac and PC
- File Type: Standard Mono Broadcast WAV Files
- Monitoring: 1 x 1/4” TRS Jack Socket, Headphone Mix / Solo
- Physical:
- Size: 19” Rack Mounted 1U (425mm x 44mm x 170mm)
- Weight: 2.1 kg
- Power: (9V - 16V DC (< 30W). 2.1mm DC Inlet
- Audio Inputs/Outputs:
- Analogue Inputs / Outputs:
- Levels: -10dBu / +4dBu Switchable
- Max Input / Output Level: +22dBu = 0dBFS
- A-D / D-A Conversion: 24bit, 96kHz 106dB S/N, 96dB THD+N (Typical A-Weighted)
- Analogue Inputs / Outputs:
- Control and Synchronisation:
- JoeCoRemote for iPad: App + Hardware Interface for Remote Control. Wireless or Wired Connectivity
- MIDI: 1 x 5-Pin DIN (Open Loop). MIDI Time Code (MMC) and MIDI Machine Control (MMC) Protocol
- LTC: 1 x 1/4” TRS Jack Socket. Frame Rates Supported (30 fps, 29.97 Drop fps, 25 fps, 24 fps, 23.98 fps)
- Machine Control: 1 x 9-Pin D, SONY PII Protocol
- Audio Clock Synchronisation: 2 x RCA Sockets AES3 / SPDIF Format, Also Used for Communications to Slave Units
JoeCo BlackBox BBR1-A 24-Track Recorder Includes
- 1 x JoeCo BlackBox BBR1-A 24-Track Recorder
- 1 x Power Supply
- Manufacturer Warranty
