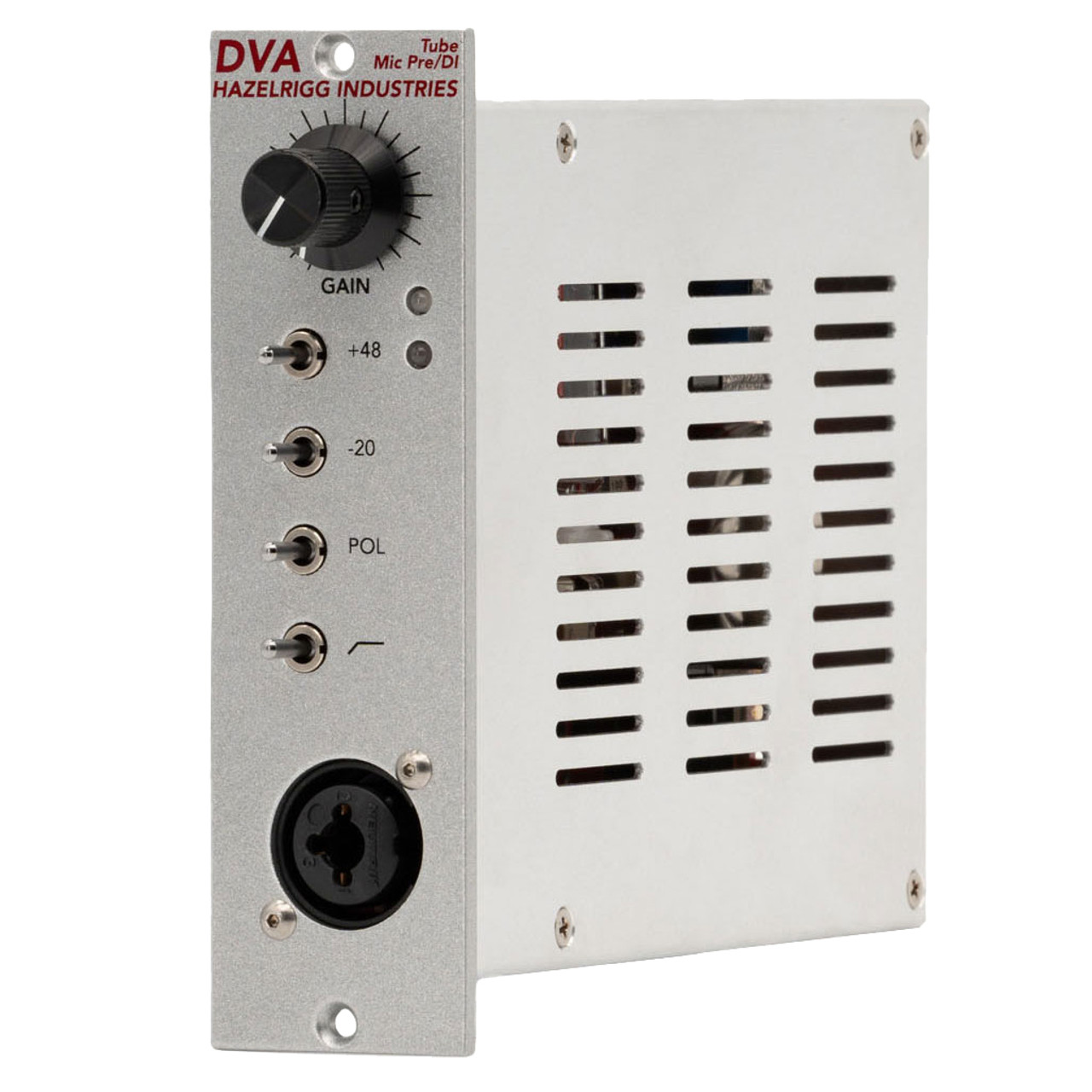

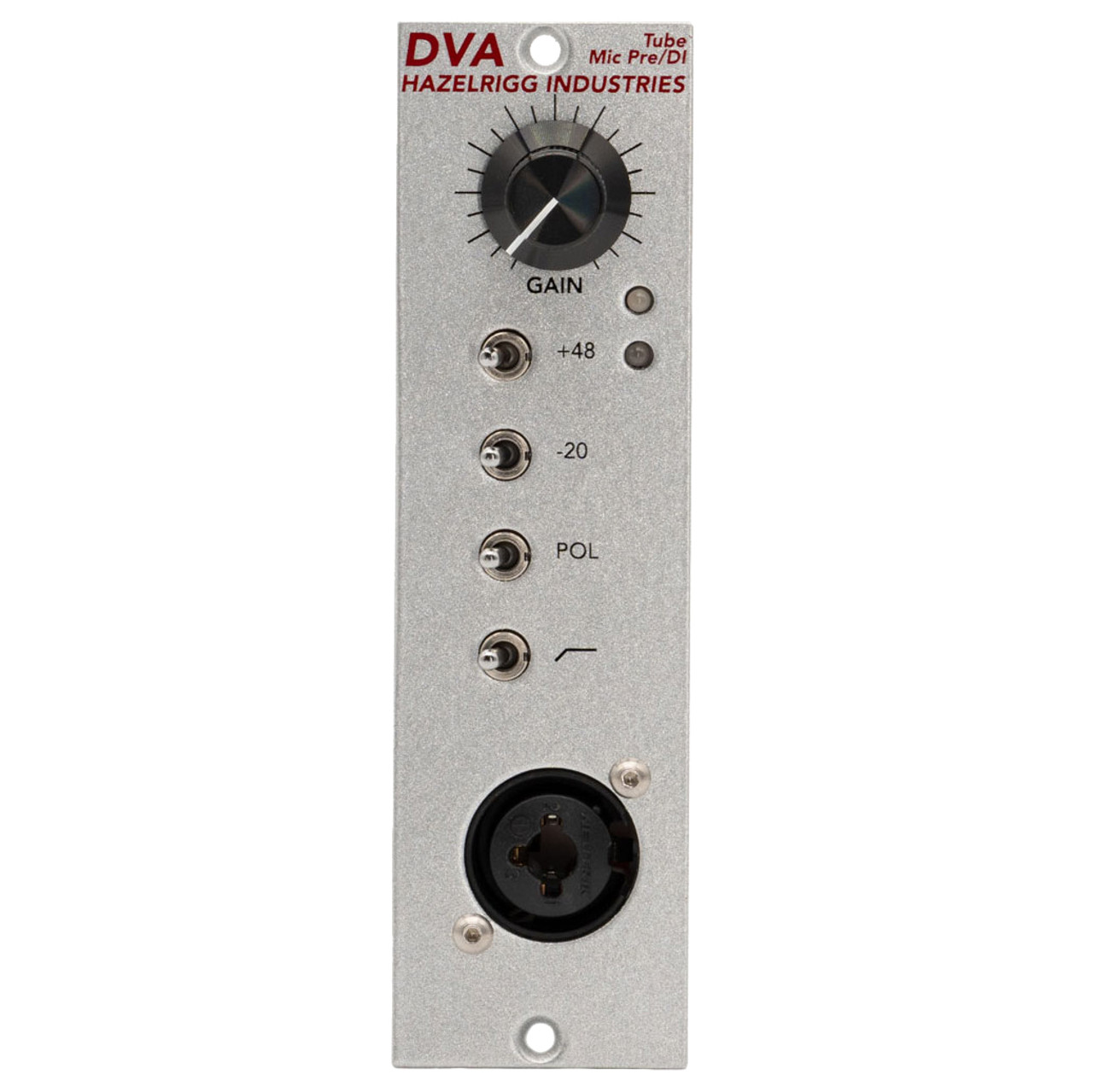

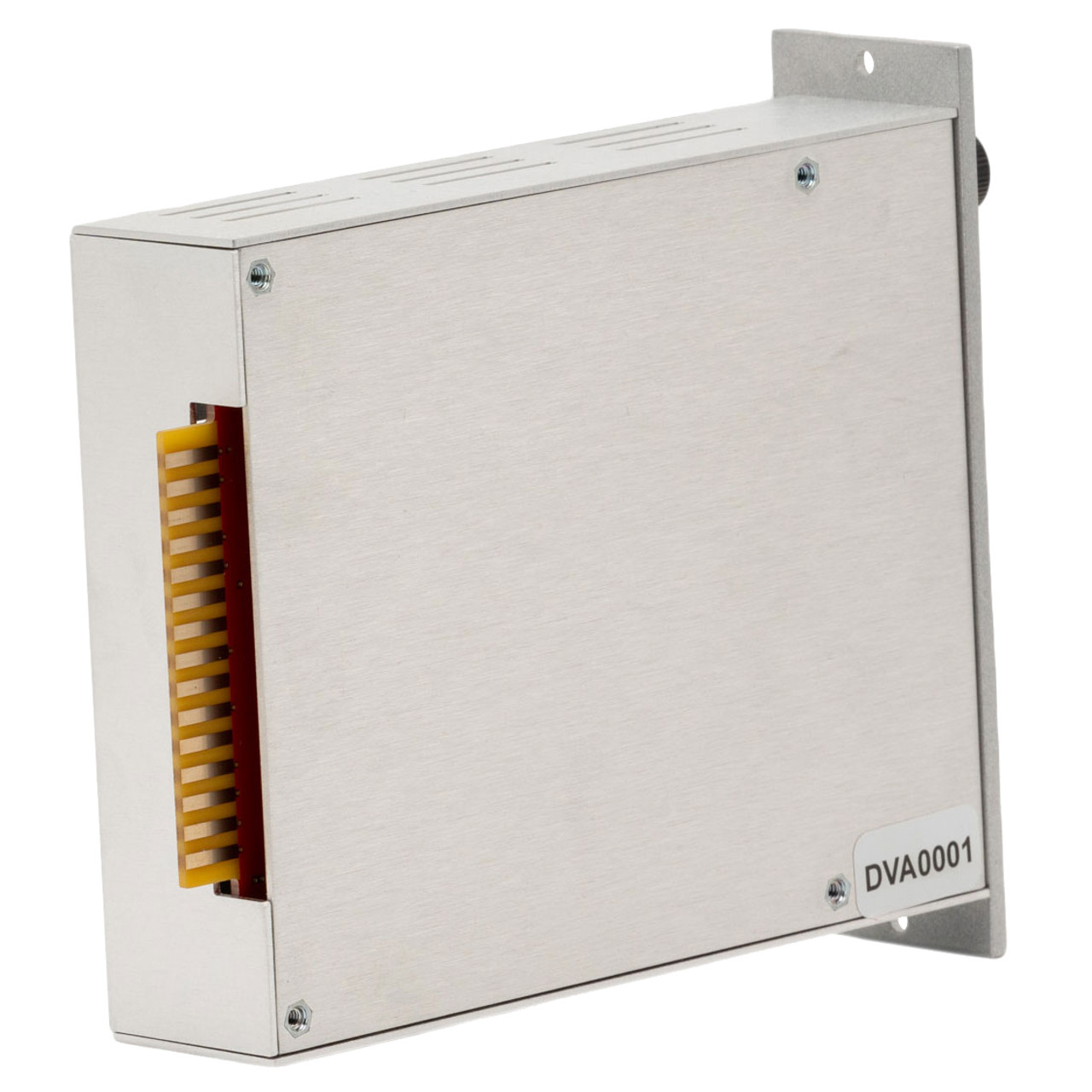

The Hazelrigg Industries DVA 500-Series Preamp is a single channel, single slot tube microphone preamp that is built around DW Fearns legendary VT-2 Circuit. The same circuit used in the Hazelrigg VLC!
The Hazelrigg Industries DVA 500-Series Preamp is a hybrid microphone preamplifier based on the Hazelrigg Industries VLC and D.W. Fearn VT-2 preamp. Utilizing a single 6072a vacuum tube, the input circuitry matches the VLC/VT-2 input stage exactly and features transformers in both the input and output stages. Make-up gain is provided by a low-THD/high output solid state signal path (as opposed to the vacuum tube circuits in the VLC/VT-2) due to the module size and power supply limitations inherent in the 500 series format. Total gain available is approximately 60db.
User tips: Many condensers have a high output and require an input pad to avoid overloading the input transformer. If needed, we suggest using the pad on the microphone if available. Users looking for ‘saturation’ can try engaging the -20 db pad and sending the DVA an attenuated signal, then adjust gain for tone and output.
Hazelrigg Industries DVA 500-Series Preamp Features
- 6072a vacuum tube
- 60dB of Gain
- -20dB Pad
- High-Pass Filter
- XLR - 1/4" TS combo jack input on face of the unit
- 1/4" TS instrument DI
Hazelrigg Industries DVA 500-Series Preamp Includes
- Hazelrigg Industries DVA 500-Series Preamp
- Manufacturer Warranty
