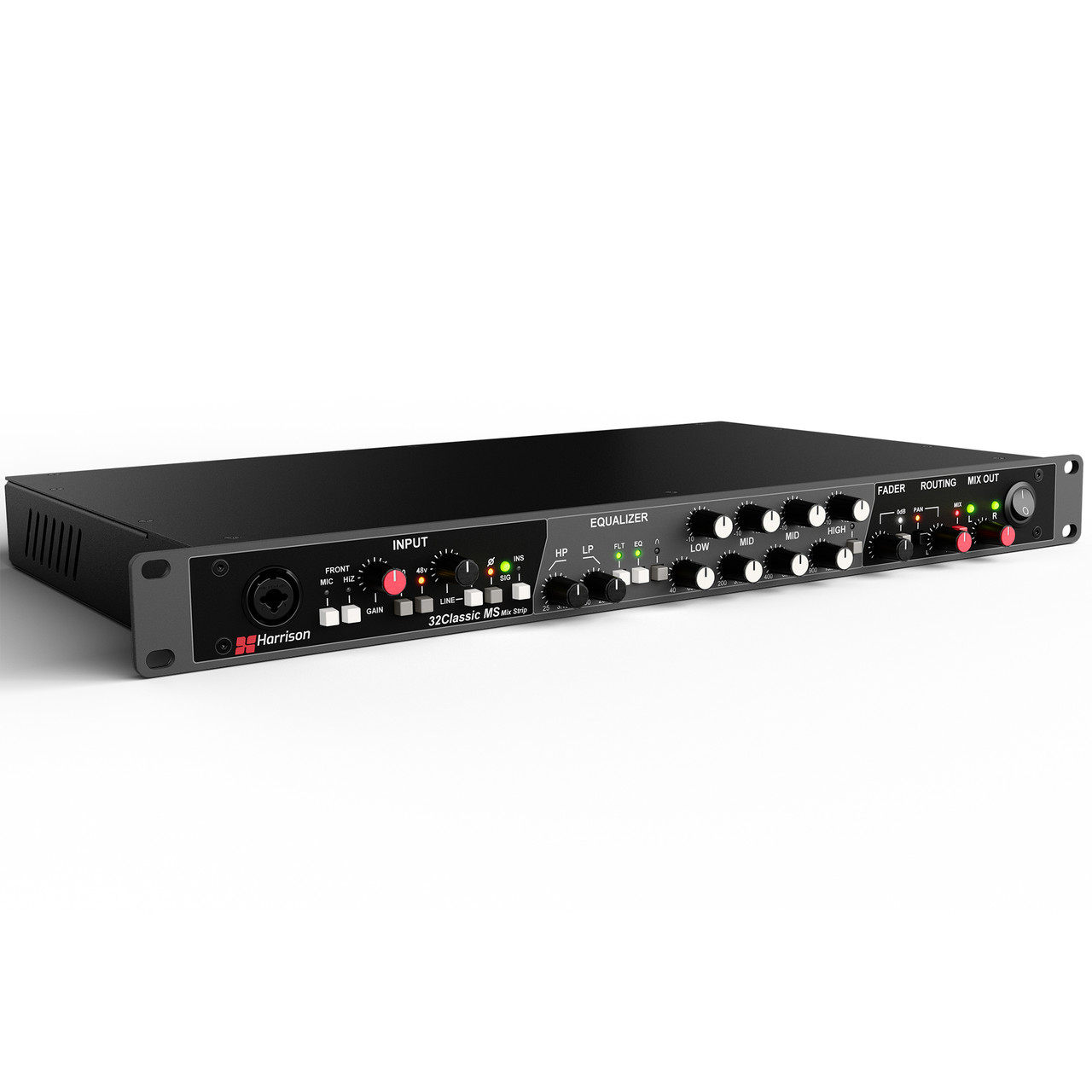

The Harrison 32Classic MS Channel Strip
The Harrison 32Classic MS Channel Strip boasts the same design as the 32Classic console, 32Classic MS features premium Jensen JT-MB-CPCA transformer-coupled microphone preamp, characterful Harrison LP/HP filters with 3 dB resonant peak, and super-smooth 4-band parametric EQ. The original 3232 console was used by artists such artists such as Michael Jackson, Fleetwood Mac, Led Zeppelin, and many others to create some of the most highly regarded and timeless music ever made. Now, for the first time, that unmistakable sound is available in 19” rack format. Add a recording legend to your studio with the 32Classic MS.
Integrated mixbus and hybrid workflow features:
Build your Harrison recording and mixing system one channel at a time with the 32Classic MS’s integrated mixbus. Designed to enhance workflows and elevate recording and mixing capabilities, the mixbus allows outputs from multiple units to be cascaded together via rear panel ‘summing’ connectors and jumper cables. Balance signals using the Fader control and Pan them across the stereo outputs. Or engage the 0 dB Fader Bypass and record at unity gain. Perfect for hybrid workflows, mobile rigs, or tracking rooms, the 32Classic MS’s integrated mixbus delivers the iconic Harrison tone with exceptional flexibility.
32Classic MS sidecar:
Enhance your mixing and/or tracking workflow by combining multiple 32Classic MS channels for use as a “sidecar” to your existing setup. Perfect for drum or instrument buses, it adds the iconic Harrison sound to your sonic palette, delivering warmth, depth, and flexibility to any recording or mixing application.
Harrison 32Classic MS Channel Strip Features
- Flexible Input Section
- Dedicated Mic and Line XLR inputs on the rear panel.
- Selectable Instrument/Hi-Z and Mic combi-XLR input on the front panel.
- Transformer Coupled Preamp
- The microphone preamplifier uses legendary Jensen JT-MB-CPCA transformer.
- 32 Classic Equalizer
- Harrison 4 band parametric EQ with proportional Q from 32Classic Console.
- Legendary Harrison Low Pass and High Pass filters.
- Mixer Section
- Unique mixer section which allows the channel signal to feed a stereo mix bus with panning. The balanced
- Mix bus can be cascaded across multiple 32Channel Strip MS units.
- Insert Point
- Each 32Classic MS unit includes a balanced Insert Point.
Harrison 32Classic MS Channel Strip Specifications
- Mic pre:
- Minimum Gain: 20 dB
- Maximum Gain: 70 dB
- Input Impedance: 5.8K
- Input Impedance Pad In: 1.3K
- Maximum Input Level No Pad: +4 dBu
- Maximum Input Level With Pad: +24 dBu
- THD 50 dB Gain: < 0.01%
- Frequency Response 20 Hz: 20 KHz +/- 0.25 dB
- Ein: < 129 dBu
- Line level input:
- Input Impedance: 10K
- Line Trim: +/- 9.5 dB
- Maximum Input Level: +24 dBu
- THD +4dBu Line Input To Stereo Mix Output: < 0.01%
- Frequency Response: 20 Hz – 20 KHz +/- 0.25 dB
- Line level outputs:
- Maximum Output Level: +24 dBu
- Output Impedance: 30 Ohms
Harrison 32Classic MS Channel Strip Includes
- Harrison 32Classic MS Channel Strip
- IEC Power Cable
- Manufacturer Warranty
