The dbx 1215 Graphic Equalizer is a dual channel 15-Band Equalizer designed to meet the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls.
The dbx 1215 Graphic Equalizer provides standard features like dual channels, 15 2/3 octave bands, ISO frequency centers, +/-12 dB input gain range, and switchable 40Hz/18 dB per octave low-cut filters, but also includes other thoughtful features. These include 45 mm faders; selectable +/-6dB or +/-15dB boost/cut range for precise gain adjustments; XLR, barrier strip, and 1/4'' TRS connectors for installation ease; balanced inputs and outputs for quiet operation; and chassis/signal ground lift capabilities for quick hum isolation. The visionary design of the dbx 1215 Graphic Equalizer makes your job easier.
The dbx 1215 Graphic Equalizer was precision engineered to provide years of maintenance-free operation in any application. The magnetically isolated transformer, electronically balanced/unbalanced inputs and servo balanced/unbalanced outputs, RF-filtered inputs and outputs, and power-off hard-wire relay bypass with 2 second power up delay were steps the dbx engineers took to ensure compatibility for all installations. Only the best components were utilized, yielding a 10Hz to 50kHz frequency response, greater than 90dB SNR (ref +4dBu), less than 0.005% THD +Noise (1kHz at +4dBu), and interchannel crosstalk of less than -80dB from 20Hz to 20kHz. All this attention to detail is contained in a 2U steel/aluminum chassis.
dbx 1215 Graphic Equalizer Features
- Switchable boost/cut ranges of ±6 or ±15 dB
- Electronically balanced/unbalanced inputs
- Servo balanced/unbalanced inputs
- RF filtered inputs and outputs

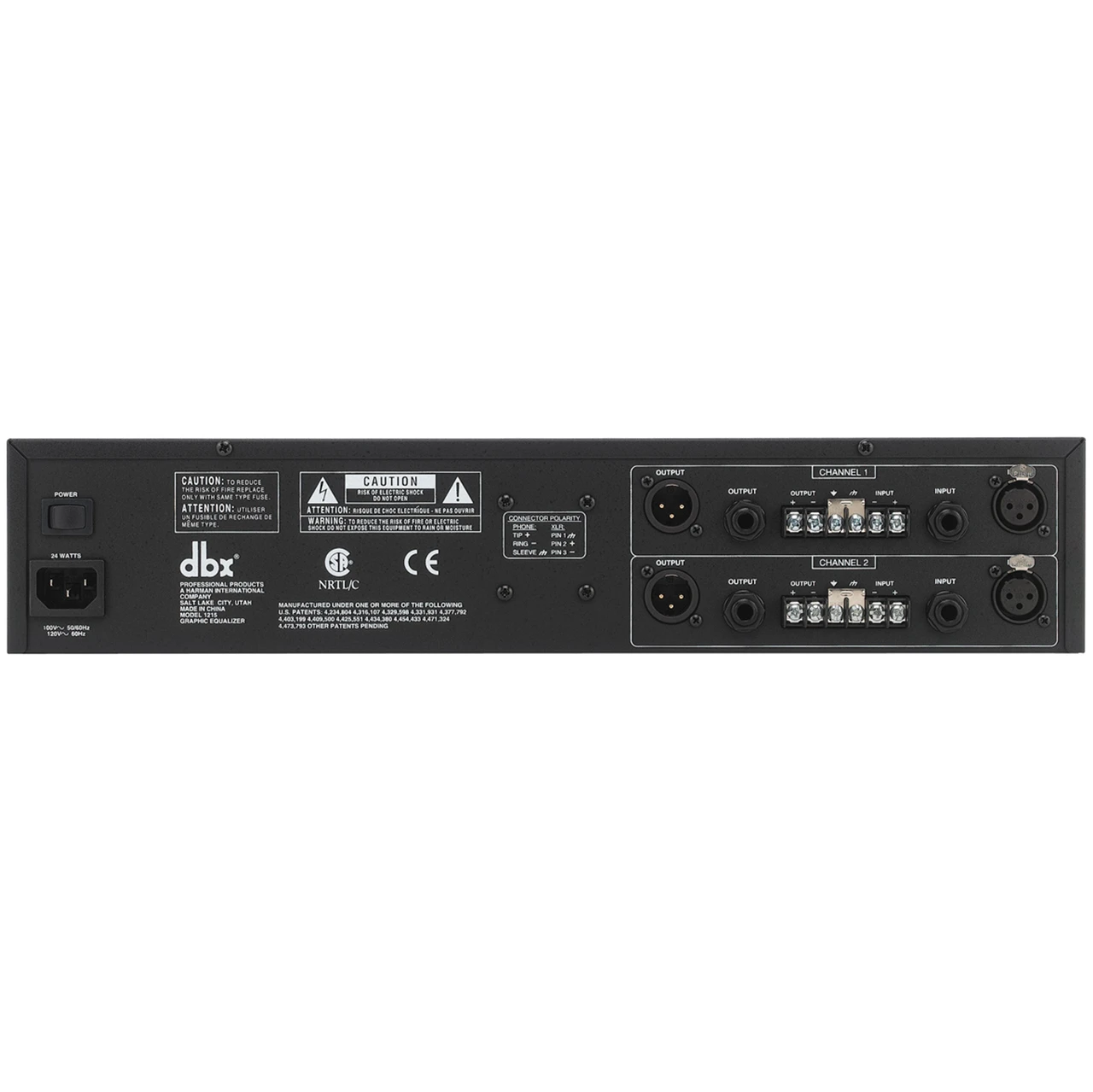

- XLR, Barrier Strip, and 1/4" TRS connectors
- -12dB/+12dB input gain range
- 18dB/octave 40Hz Bessel low-cut filter
- Chassis/signal ground lift capability
- Internal power supply transformer
- Power-off hardwire relay bypass with 2-second power-up delay
dbx 1215 Graphic Equalizer Specifications
- Input Connectors: 1/4" TRS, female XLR (pin 2 hot), and barrier terminal strip
- Input Type: Electronically balanced/unbalanced, RF filtered
- Input Impedance: Balanced 40 kOhm, unbalanced 20 kOhm
- Max Input: >+21dBu balanced or unbalanced
- CMRR: >40dB, typically >55dB at 1kHz
- Output Connectors: 1/4" TRS, male XLR (pin 2 hot), and barrier terminal strip
- Output Type: Impedance-balanced/unbalanced, RF filtered
- Output Impedance: Balanced 200 ohm, unbalanced 100 ohm
- Max Output: >+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm)
- Bandwidth: 20Hz to 20kHz, +0.5/-1dB
- Frequency Response: <10Hz to >50kHz, +0.5/-3dB; +/-15dB range; +/-6dB range
- Dynamic Range: 109dB; 115dB
- Signal to Noise Ratio: 90dB, 97dB
- THD+Noise: <0.005%
- Interchannel Crosstalk: <-80db, 20Hz to 20kHz
- Bypass Switch: Bypasses the graphic equalizer section in the signal path
- Low cut Switch: (recessed) Activates the 40Hz 18dB/octave Bessel high-pass filter
- Range Switch: (recessed) Selects either +/- 6dB or +/- 15dB slider boost/cut range
- I/O Meter: 4-LED bar graph (Green, Green, Yellow, Red) at -10, 0, +10, and +18dBu
- Indicators: EQ Bypass (Red); Clip (Red); Low Cut (Red); +/-6dB (Yellow); +/-15dB (Red)
- Operating Voltage: 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz
- Power Consumption: 24W
- Power Connector: IEC receptacle
- Dimensions: 3.5" H X 19" W X 7.9" D (8.9cm x 48.3cm x 20.1cm)
- Net Weight: 8.5 lbs. (3.9 kg)
- Shipping Weight: 9.5 lbs. (4.3 kg)
dbx 1215 Graphic Equalizer Includes
- dbx 1215 Graphic Equalizer
- AC Power Cord
- Printed Operation Manual
- Warranty Registration Card
- Four Rack Mount Screws And Washers
