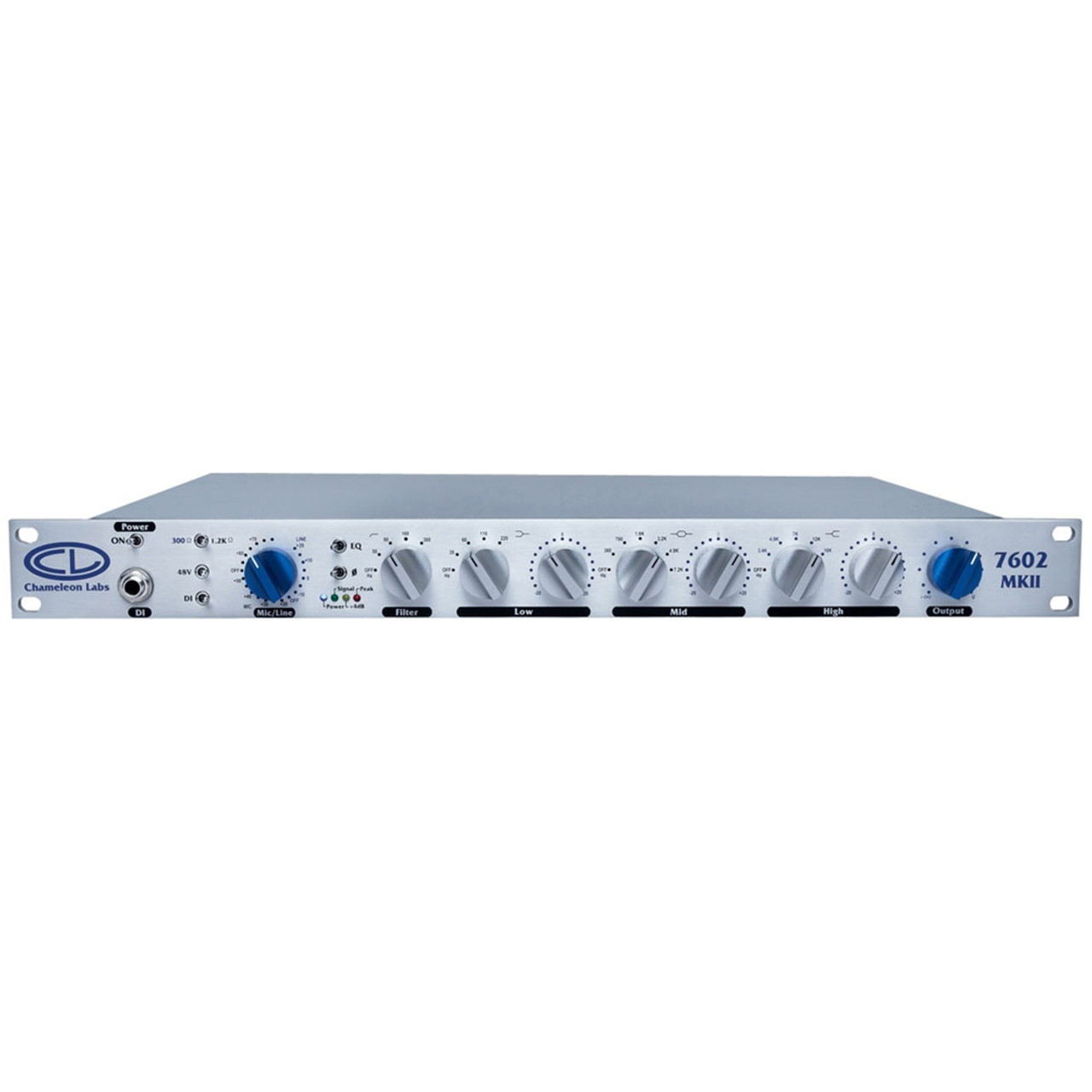

Front End Audio acquires previously owned gear through our Buy-Back program. You can purchase used gear at a great price but there are no manufacturer warranties with these items. These items have been inspected and/or tested by our staff to make sure each one is in working condition and comes with our commitment to service. This Chameleon Labs 7602 MKII looks great and functions perfectly.
The 7602 MKII Microphone Preamplifier/Equalizer is based on a classic and revered design utilizing pure Class 'A' circuitry. This unit is made with 100% discrete components, hand wound transformers and was fabricated to precisely match vintage counterparts manufactured in the early to mid 70's. The Model 7602 MKII represents a dramatic breakthrough in delivering vintage audio performance at an affordable price. The Equalizer Section features a selectable 3 band design with a flexible filter section:
- Filter - This is a high pass filter with 3db loss at 300Hz, 160Hz, 80Hz, and 50Hz with an 18db cut per octave slope.
- Low Equalization - This section has a shelving slope with four frequency selections: 220Hz, 110Hz, 60Hz, and 35Hz. This equalizer affects the selected frequency and all others below it. The gain control provides 20db of boost or cut.
- Mid Equalization - This section has a peaking characteristic with six frequency selections: 360Hz, 700Hz, 1.6k, 3.2k, 4.8k, and 7.2k. The gain control provides 20db of boost or cut.
- High Equalization - This section has a shelving characteristic with five frequency selections: 16k, 12k, 7k, 4.9k and 3.4k. This section adjusts the selected frequency and all others above it. The gain control provides 20db of boost or cut.
Chameleon Labs 7603 Microphone Preamplifier Features
- Fully balanced transformer mic and line inputs
- Balanced XLR output
- Hi-Z direct input for instruments on the front panel
- LED input metering *NEW
- Selectable mic impedance switch (300 or 1200 Ohms) *NEW
- 48VDC phantom power switch
- 180 degree phase reversal switch
- 20 position gold contact ELMA rotary gain switch for both Mic and Line sections
- Output level control functions as a fader when going straight to tape
Chameleon Labs 7602 MKII Microphone Preamplifier Includes
- Chameleon Labs 7602 MKII Microphone Preamplifier
- Power Cable
- Manual
- Original Box
