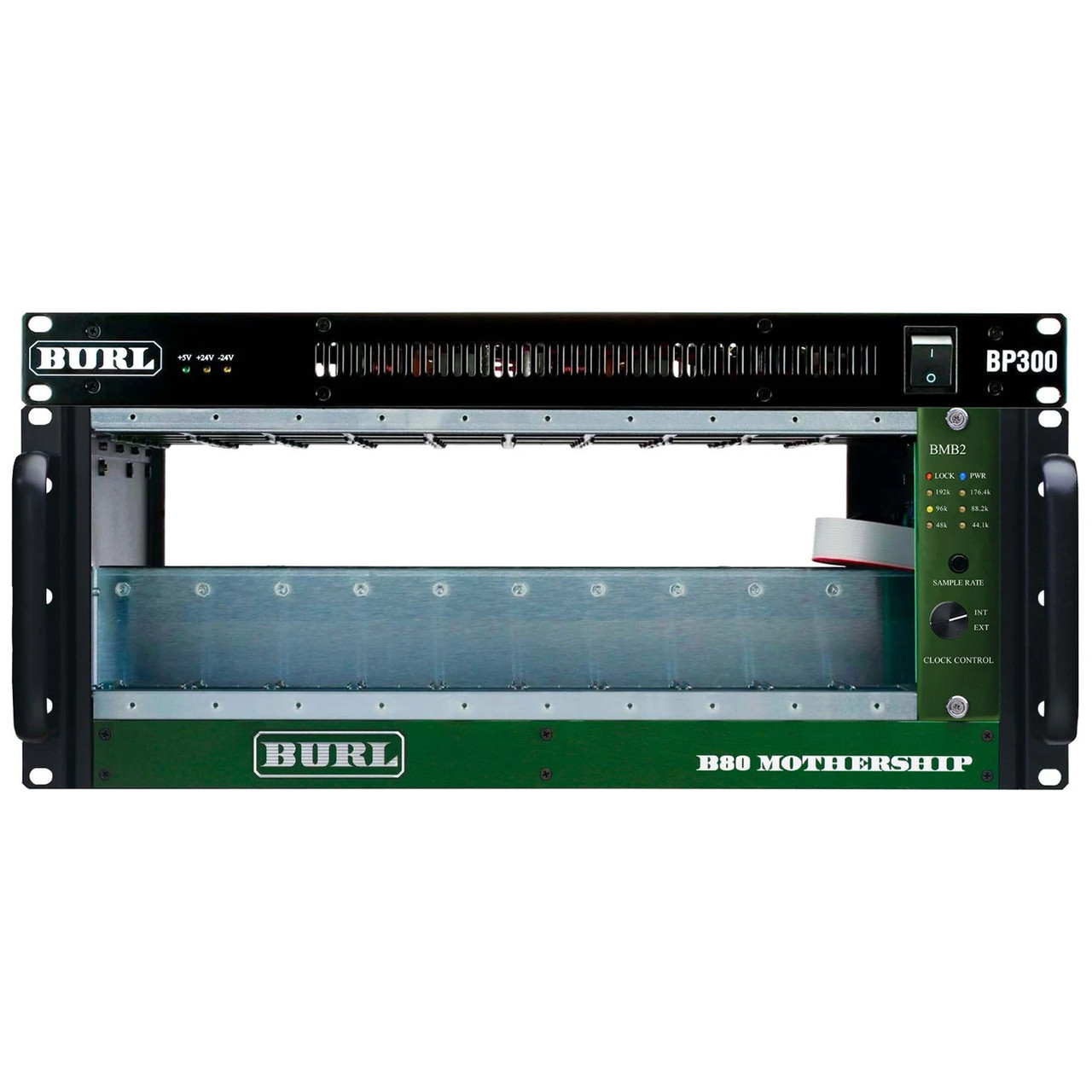

Burl Audio B80 Mothership 3 AD/DA Converter (MADI)

The Burl Audio B80 Mothership 3 AD/DA Converter combined with the BMB2 MADI Interface Card will be the heart of your MADI system. Now providing higher channel counts with Burl Black Compatibility! Powerful and expansive, the Burl Audio B80 Mothership 3 has redefined digital recording!

The Burl Audio B80 Mothership 3 AD/DA Converter (MADI), is the first major code update to the B80 MOTHERSHIP in many year. MOTHERSHIP 3, unlocks the true channel count potential of THE MOTHERSHIP. Now with MOTHERSHIP 3, up to 64 channels of IO (@ 44.1KHz and 48kHz) are possible per daughter card slot

For anyone who has felt that digital recording has been lacking soul, warmth, and musicality, the B80 Mothership is the answer. Building on the technology of the two-channel B2 Bombers, the B80 Mothership was forged from Burl Audio’s deep dedication to analog class-A circuitry. The result is not only heard, but it is also felt. The Mothership stands out from every other interface on the market not because it is colored, but because it does not sterilize your audio.

BP300 Power Supply
Powering the Mothership takes some juice, so Burl Audio designed and includes the BP300 Power Supply to drive the possible 80 channels of class-A analog circuitry. With a 300-watt continuous power capability, this multi-channel AD/DA converter is finally getting the power it deserves!

BMB2 Interface Card
The BMB2 features two optical MADI ports for use with ASIO (Windows) or CORE AUDIO (Mac) PCIe MADI cards. With two optical ports, 64in/64out at 44.1k, 48k, 88.2k, 96k, and 32in/32out at 176.4k, and 192k are supported. With 6 BAD8s and 4 BDA8s a 48×32 IO can be achieved. With 2 BAD8s and 8 BDA8s a 16×64 IO can be achieved. With the configurability of the Mothership the IO possibilities are limitless.

B80 Mothership 3 Configuration
The Burl B80 Mothership 3 is a modular chassis that allows you configure the chassis with any of their AD cards, DA cards, and even a Wordclock card, over it's 10 slots to meet the demands of your studio. First you select the chassis with the interfacing card that you need. In this case you have selected the MADI (Burl BMB2), but you also have the Digilink (BMB1), DANTE (Burl BMB3) and SoundGrid (Burl BMB4) interface cards to choose from. Once you have the chassis setup with the right interfacing card, the fun starts with configuring your I/O. Burl Audio has several “Daughter Cards” to choose from, giving you a vast choice in configurations. These cards are sold seperately so you will have to add them to your cart, but lets take a look at your options:

• B4 Mic Pre – This card provides 4 high end mic preamps, that also accept line level input, over the four fully balanced XLR inputs. Utilizing their BX6 input transformers, the preamps are hi-fi and rich sounding, providing 4 channels of extremely musical AD conversion.
• BDA4 – This card provides 4 channels of high end musical DA conversion over fully balanced XLR connectors, and utilizes Burl's discrete BOPA14 Op-Amp, and BX5 nickel core output transformers.
• BAD4M – This card provides 4 mastering grade line level input channels of AD conversion. Utilizing Burls BOPA14 or BOPA11 op-amps (your choice), you get pristine detailed audio. Further the BX1 input transformers can be switched in and out of the signal to provide a little musical color if desired.
• BDA4M – This card provides all the same features of the BAD4M, but in mastering grade DA conversion, and it utilizes Burl's BX5 output transformers – which are able to be switched in and out of the signal path for musical color.
• BAD8 – This card provides 8 channels of high end musical AD conversion over a DB25 connector (Tascam wiring), and utilizes Burl's high definition BX1 input transformer.
• BDA8 – This card provides 8 channels of high definition DA conversion over a DB25 connector (Tascam wiring), in a transformerless design that utilizes Burl's BOPA14 discrete Op-Amps.
• BAD16 – This card provides 16 channels of high end musical AD conversion over a DB25 connector (Tascam wiring), and utilizes Burl's high definition BX1 input transformer.
• BDA16 – This card provides 16 channels of high definition DA conversion over a DB25 connector (Tascam wiring), in a transformerless design that utilizes Burl's BOPA14 discrete Op-Amps.
• BDA12 – This card provides 12 channels of high definition DA conversion, plus stereo ouputs for Monitors and Headphones over a DB25 connector (Tascam wiring), in a transformerless design that utilizes Burl's BOPA14 discrete Op-Amps.
• BAES4 – This card provides 4 channels of AES/EBU input, and 4 channels of AES/EBU output, over XLR connectors. Clocking is carried over the AES/EBU connection, and the card features a BNC Wordclock output for sending clock to another device if needed.
• BCLK – This card provides 8 BNC Wordclock outputs, and one AES Wordclock output (for a total of 9 Wordclock outputs of stable low jitter clocking, with two independently programmable banks.
• B22 ORCA - This card provides a high-end and transparent monitor controller as well as a headphone amp to your Mothership. This is Burls Mothership version of their highly respected Orca Control Room Monitor controller. The B22 ORCA is available with either an ALPS or ELMA attenuator, a choice of Burl's BOPA14 or BOPA11 op-amps, and it features their BX5 output transformers – which are able to be switched in and out of the signal path for musical color.

Front End Audio is well versed in the Burl Audio line, so if you have any questions on the different configurations, cards, or options, just let us know and we will be happy to help you setup a B80 Mothership to meet your needs!

Burl Audio B80 Mothership 3 AD/DA Converter Features

• Burl Black Compatibility
• 4U main chassis
• BMB2 MADI Motherboard
• 1 BNC Word Clock In
• 2 BNC Word Clock Out
• 10 card slots
• All slots accept AD/DA, AES and BCLK
• 4 and 8 channel analog cards

Burl Audio B80 Mothership 3 AD/DA Converter Includes

• Burl Audio B80 Mothership 3 AD/DA Converter Chassis
• Burl Audio BMB2 MADI Interface Card
• Burl Audio BP300 Power Supply
• All Associated Power and Linking Cables
• Manufacturers Warranty
