Audix TM1 Plus Calibration Microphone Kit

Audix

(1 review) Write a Review
Product Code: 9999-12301
$299.00
Adding to cart… The item has been added
We Need A Few Days

This item must be ordered in from the manufacturer. Give us a few days to get it here and heading your way. Go ahead and place your order and we will let you know as soon as it ships. If you have a deadline then please contact us before placing the order so we can meet your expectations.

Got Questions? Need Support?

888-228-4530 Contact Us!

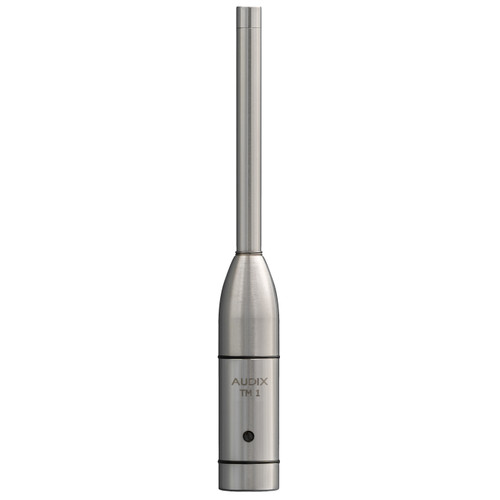

The Audix TM1 Plus Calibration Microphone Kit is a combination kit which includes the TM1 measurement microphone, threaded acoustic windscreen, shock mount clip, ½ inch calibrator adaptor and microphone calibration data on CD.

The Audix TM1 Plus Calibration Microphone Kit data files are a numeric representation of the TM1 frequency response. These, along with the provided sensitivity of the microphone, can be used with a variety of popular software measurement systems to correct the response curve of the microphone. The Audix TM1 is a 6 mm pre-polarized condenser microphone used for test and measurement applications. The Audix TM1 is known for its linearity, accurate response, consistency, ease of use and affordability.

Equipped with a uniformly controlled omnidirectional polar pattern, the Audix TM1 condenser microphone is designed to capture acoustic measurements for room analysis software programs, real time analyzers and other sound control devices. With a flat frequency range of 20 Hz – 25 kHz, the Audix TM1 is an excellent tool for sound engineers, sound companies and recording enthusiasts.

The Audix TM1 omnidirectional test and measurement microphone is designed, machined, assembled and tested by Audix in the USA.

Audix TM1 Plus Calibration Microphone Kit Features

  • 6mm Pre-polarized condenser capsule
  • High SPL response
  • Precision machined brass housings
  • Low noise electronics
  • Replaceable electronics and capsule

Audix TM1 Plus Calibration Microphone Kit Specifications

  • Transducer Type: Pre-polarized Condenser
  • Frequency Response: 20 Hz - 25 kHz +/-2 dB
  • Polar Pattern: Omni
  • Output Impedance: 200 Ohms
  • Sensitivity: 6 mV / Pa @ 1k
  • Maximum SPL: 130 dB with Distortion <1%140 dB Max
  • Signal to Noise Ratio: 66 dB
  • Equivalent Noise Level: 28 dB (A Weighted)
  • Dynamic Range: 112 dB
  • Connector: Male XLR
  • Power Requirements: 18-52 V Phantom
  • Polarity: Positive Pressure on Diaphragm Produces Positive Voltage on Pin 2 Relative to Pin 3 of Output XLR Connector
  • Materials / Finish: 4 Piece Precision Machined Brass / Nickel Finish
  • Weight: 132 g / 4.7 oz
  • Length: 150 mm / 5.9 in

Audix TM1 Plus Calibration Microphone Kit Includes

  • Audix TM1 Measurement Microphone
  • Threaded Acoustic Windscreen
  • Shock Mount Clip
  • 1/2-inch Calibrator Adaptor
  • CD of Microphone Calibration Data
  • Manufacturer Warranty

1 Review Hide Reviews Show Reviews

  • 5
    Can withstand a hurricane!
    Utha Kumanan

    Used this mic in the harshest conditions, rain shine, humid, scorching hot. Unlike most Measurement mics this one seems to work no matter what. The added calibration file helps ensure Frequency based measurements are accurate! The shock proof mic clip is a great well built throw in as well! Best for its price!
