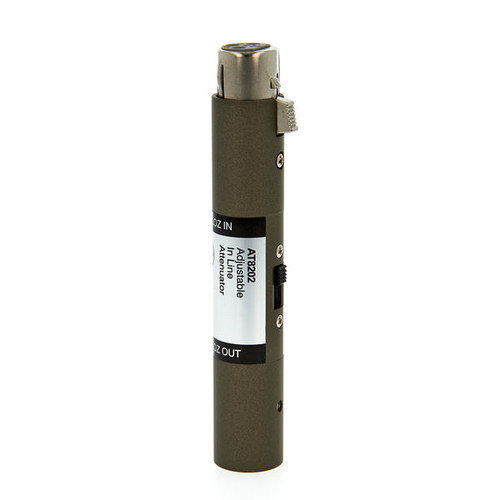

The Audio Technica AT8202 In-Line Attenuator is designed to prevent balanced low-impedance microphones from overloading electronics having low- to mid-impedance inputs in high-SPL applications.
The Audio Technica AT8202 In-Line Attenuator is designed to assure the proper match of the microphone to the inputs of mixing consoles and portable recording devices without experiencing input overload of the electronics due to high-level signals. The Audio Technica AT8202 is compatible for use in phantom power applications.
Audio Technica AT8202 In-Line Attenuator Features
- Prevents overload of sensitive input stages
- Provides -10 dB, -20 dB or -30 dB attenuation
- Compatible for use in phantom power applications
- Durable steel case provides optimum shielding from hum
- For use with balanced Lo-Z microphones
- Can be plugged directly into an XLRF-type chassis-mount connector
Audio Technica AT8202 In-Line Attenuator Specifications
- Input Impedance: 1000 Ohms (-10 dB)
- Output Impedance: 200 Ohms (-10 dB)
- Frequency Response: 20-20,000 Hz
- Attenuation: -10 dB, -20 dB, -30 dB
- Input Connector: XLRF-Type
- Output Connector: XLRM-Type
- Weight: 2.8 oz (80 Grams)
- Dimensions: 3.94" (100 mm) Long, 0.75" (19 mm) Diameter
Audio Technica AT8202 In-Line Attenuator Includes
- Audio Technica AT8202 In-Line Attenuator
- Manufacturer Warranty
