Allen & Heath MixWizard4 14:4 Mixer

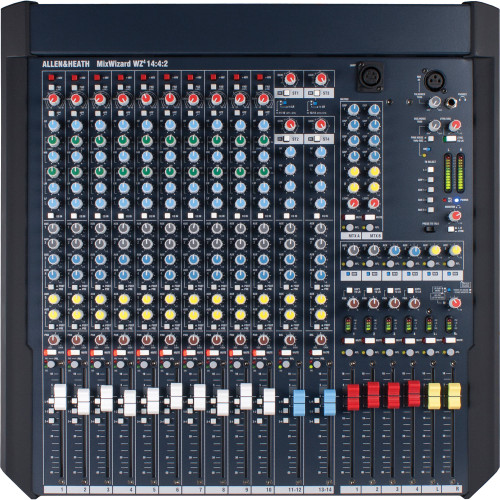

The Allen & Heath MixWizard4 14:4 Mixer is a compact console designed for professional live sound mixing. With individual circuit cards, potentiometers nutted to the panel for absolute strength, steel chassis, and no compromise circuit design, the MixWizard4 14:4 ensures the finest sonic performance.

The Allen & Heath MixWizard4 14:4 Mixer is designed as a uniquely versatile live sound mixer, and is equally at home at Front of House, on Monitors, or doubling up to fill both roles at once. The MixWizard4 14:4 features the acclaimed 4 band EQ with 2 sweepable mids, high quality 100mm faders, 6 aux sends, 12 segment bargraph metering and Allen & Heath's unique QCC connector system for easy desktop, rack or flightcase mounting. This 4th generation MixWizard console now has the option to fit a multichannel USB interface with high quality 16 channel soundcard for easy multitrack recording and 2-track playback. If you’re looking for professional grade, all-purpose analogue mixers in a compact, rack mountable frame, the Allen & Heath MixWizard4 14:4 Mixer continues to set the bar.

FoH / Monitor / Dual Mode
In FoH Mode, the 4 groups with inserts, 100mm faders and XLR outputs can be routed and panned to the LR mix for flexible sub-mixing. The main LR mix has inserts, separate left and right faders, and XLR outputs to feed the main speaker system. EQ and signal processing can easily be inserted on group and main outputs. In Monitor Mode, the aux mixes are routed to the group and LR faders, inserts and XLR outputs. The AFL and PFL system is switched to the Mono output to provide an engineer’s ‘wedge’ output. In essence, it’s a perfect 6-mix monitor console with additional outputs available from the group busses via the aux master controls. In Dual Mode some auxes can be used as monitor mixes and some sub-grouping can be used along with the main LR outputs, allowing the engineer to run FoH sound and some Monitor mixes from the same console.

Allen & Heath MixWizard4 14:4 Mixer Features

• 19" Rack mountable
• 10 Mic/line inputs with balanced XLR/TRS jack, insert and direct output
• 100mm Faders
• Reverse switches swap the function of the group and aux masters in Monitor or Dual Mode applications
• 6 Aux sends – switchable pre/post fade
• 4 Audio groups
• 2 Dual Stereo inputs with separate gain and ‘ON’ switches allowing inputs to be selected independently or mixed together
• 4 Band EQ with 2 swept mids
• 6×2 Matrix for providing feeds for in ear monitors, delay speakers, video, broadcast and more
• Oscillator and Pink Noise generator for line-up and speaker testing
• Tri-colour, 12 segment bargraph metering
• +48V Phantom Power
• Signal and Peak LEDs
• Talkback Mic XLR with trim
• Lamp socket
• USB multitrack recording option

Allen & Heath MixWizard4 14:4 Mixer Specifications

• Performance:
  • Maximum Output Level:
    • XLR: +26dBu into 600 Ohms Max Load
    • Jack: +21dBu into 2k Ohm Max Load
  • Internal Headroom:
    • Channels: +21dB
    • Mix: +23dB
  • Meters: 3 Colour LED, Quasi Peak Response
  • Sensitivity: 0VU = +4dBu at XLR Output
  • Master Meters: 12 Segment -30 to +16dB
  • Channel Meters: 2 Segment -12, +16dB (5dB Before Clip)
  • Frequency Response: 20Hz to 50kHz +/-0.5dB
  • THD+N at +10dBu 1kHz:
    • Channel to Mix Out: < 0.004%
  • Crosstalk at 1kHz:
    • Fader Shutoff: >90dB
    • Channel Mute: >90dB
    • Inter Channel: >90dB
  • Noise, RMS 22Hz to 22kHz:
    • Mic EIN: -127dB
    • Residual Output Noise: < -96dBu (-100dB S/N)
    • LR Unity Fader Mix Noise: < -84dBu (-88dB S/N)
    • Group Unity Fader Noise: < -90dBu (-94dB S/N)
  • Channel HPF: 12dB/Octave Below 80Hz
  • Mono EQ:
    • HF: Shelving, +/-15dB, 12kHz
    • HM: Peak/Dip, +/-15dB, 500Hz to 15kHz, Q=1.8
    • LM: Peak/Dip, +/-15dB, 35Hz to 1kHz, Q=1.8
    • LF: Shelving, +/-15dB, 80Hz
  • Stereo EQ:
    • HF: Shelving, +/-15dB, 12kHz
    • HM: Peak/Dip, +/-15dB, 2.5kHz, Q=1.8
    • LM: Peak/Dip, +/-15dB, 250Hz, Q=1.8
    • LF: Shelving, +/-15dB, 80Hz
  • Power Requirements:
    • Supply: 100-240V, 50/60Hz Auto Sensing, IEC Input
    • Power Consumption: 45W Max
    • Mains Fuse: T630mA L 20mm
• Mechanical:
  • Free Standing Dimensions: (W x D x H) 507mm (20”) x 530mm (20.9”) x 194mm (7.7”)
  • Rack Mounted Dimensions: (W x D x H) 483mm (19”) x 122mm (4.8”) x 444mm (17.5”), 10U Underside Connectors
  • Rack Mounted Dimensions: (W x D x H) 483mm (19”) x 193mm (7.6”) x 497mm (19.6”), 11.2U Rear Connectors
  • Weight: Unpacked; 13kg (28lbs), Packed; 16kg (35lbs)

Allen & Heath MixWizard4 14:4 Mixer Includes

• Allen & Heath MixWizard4 14:4 Mixer
• Power Cord
• User Guide
• Manufacturer Warranty
